Data Protection for your Linux machines using Scripts

Introduction


Download IDrive scripts

Introduction

Backup and protect your Linux machine data using the scripts bundle provided by IDrive. Protect files during transfer and storage, using 256-bit AES encryption with an optional private key.

System/Software Requirements

  • Linux (CentOS/Ubuntu/Fedora/OpenSUSE/FreeBSD/Linux Mint) - 32-bit/64-bit
  • Perl v5.8 or later

Script Download

Download the latest script package to your Linux machine. Copy or move the downloaded script bundle to a location of your choice in your Linux machine and extract the zip archive.

After the extraction of the zip archive, you will find the scripts folder in it. Below files will be present in the scripts folder:

Executable Script files:

  1. account_setting.pl
  2. archive_cleanup.pl
  3. Backup_Script.pl
  4. check_for_update.pl
  5. edit_supported_files.pl
  6. express_backup.pl
  7. help.pl
  8. job_termination.pl
  9. login.pl
  10. logout.pl
  11. logs.pl
  12. Restore_Script.pl
  13. restore_version.pl
  14. scheduler.pl
  15. send_error_report.pl
  16. speed_analysis.pl
  17. status_retrieval.pl
  18. Uninstall_Script.pl

Other Supported files

  1. ca-certificates.crt
  2. Constants.pm
  3. cdp_client.pl
  4. cdp_server.pl
  5. cron.pl
  6. Header.pl
  7. Operations.pl
  8. Readme.txt
  9. utility.pl

Other Supported Folders

  1. Idrivelib - Contains cron startup routine files for all supported platforms and required perl modules.

Other Supported files/folders are used internally by executable script files and users must not try to execute these scripts for any reason.

Provide an appropriate permission (executable permission) to the scripts.

Example:

chmod a+x *.pl.

Help Pages

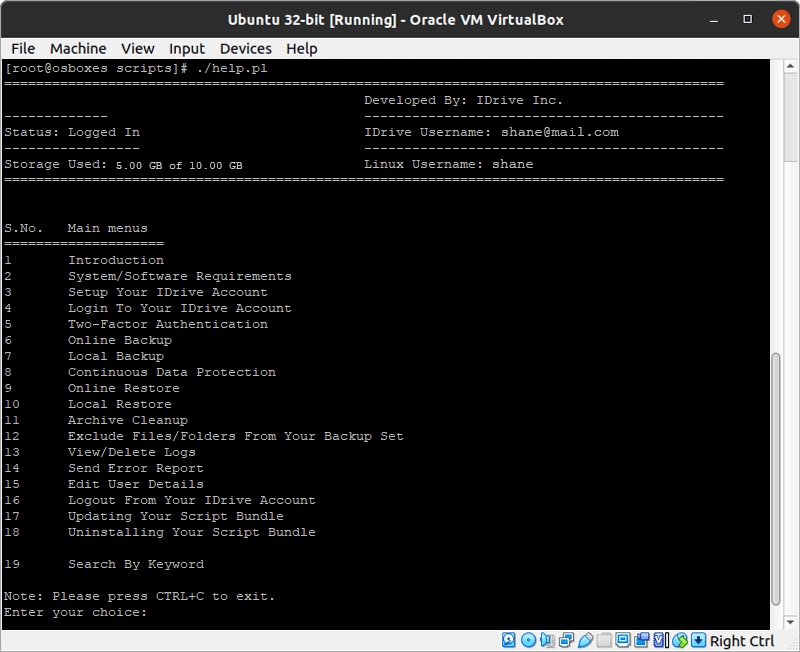

We have provided inbuilt help pages with the help of help script. You may execute below command and select the desired menu option to get a help page for the selected menu option. In case you do not find any relevant menu option, you may select the 'Search By keyword' menu option and provide the desired keyword to look for available information in help pages related to keyword provided by you.

$./help.pl

Help Pages

Setup your IDrive account

You need to have an IDrive account to use the script bundle to backup your files. In case you do not have an account, please sign up and create an account here. To set up IDrive script bundle locally with your IDrive account, run the below command and follow the instructions.

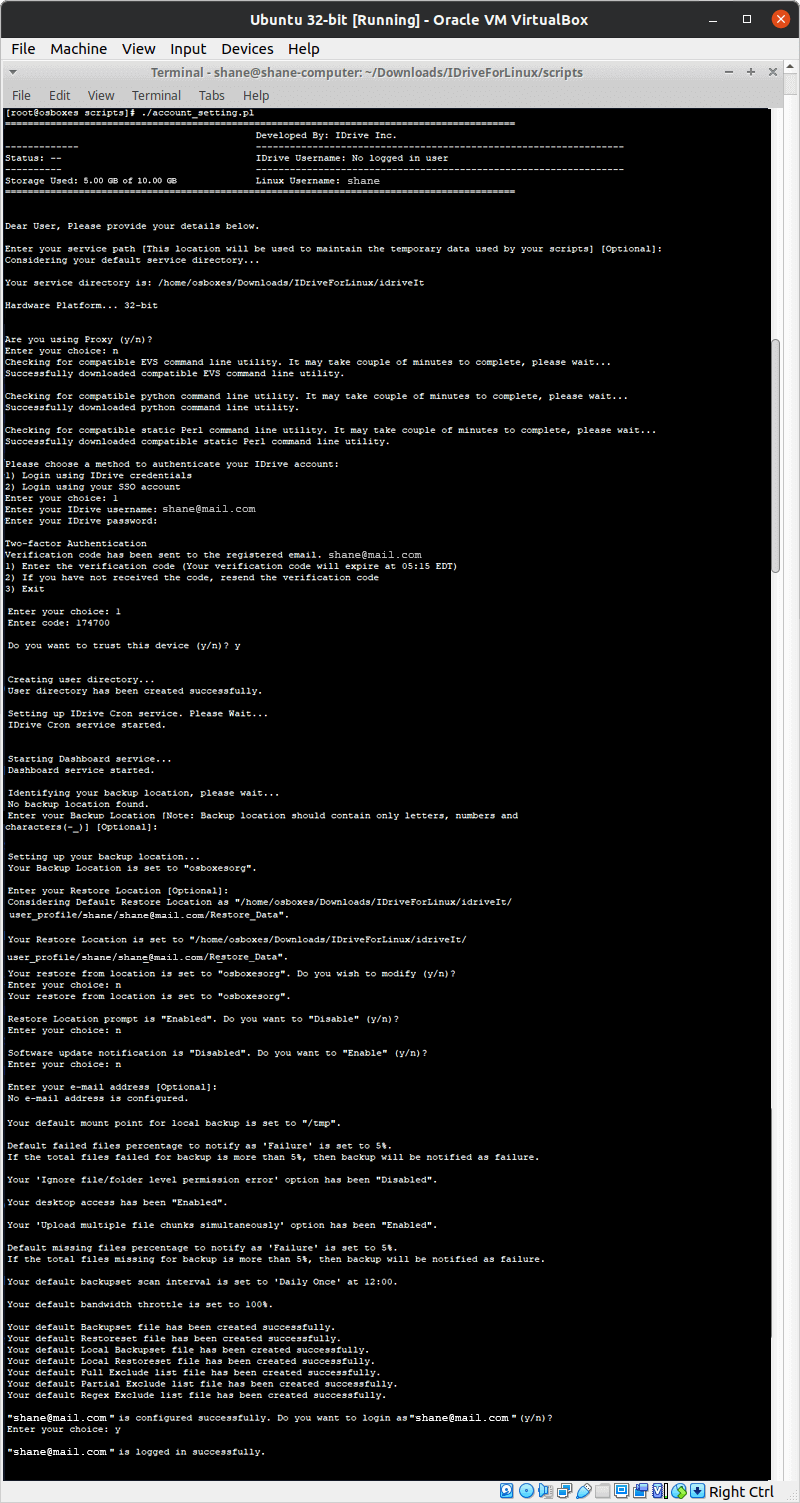

$./account_setting.pl

Note:
  • Setting up the script bundle for the first time will ask the user to enter the service path. This path will contain user specific data required to perform operations via script bundle.
  • When you try to authenticate an IDrive account using email address, it will prompt the username list which is associated with that email address. Then you have to select the particular username to authenticate.

accountSettings Note: For some IDrive accounts, while configuring account, 'Create new Backup Location'/'Select from existing Backup Locations' options will appear and Mirror/relative backup type option will not appear.

Working with Scripts

Using IDrive scripts, you can:

  • Perform backup / express backup / restore / archive cleanup / CDP operations
  • View progress for backup / express backup / restore / archive cleanup / CDP jobs
  • Schedule backup / express backup / archive cleanup / CDP job
  • View log files and more

What is Continuous Data Protection?

Continuous Data Protection (CDP) feature automatically recognizes the changes made to the files (limited to 500 MB in size) in the backup set and starts the backup operation in near real-time. CDP is not a replacement for the traditional schedule backup feature but works along with scheduled backup to provide timely protection to your data.

Log in to your IDrive account

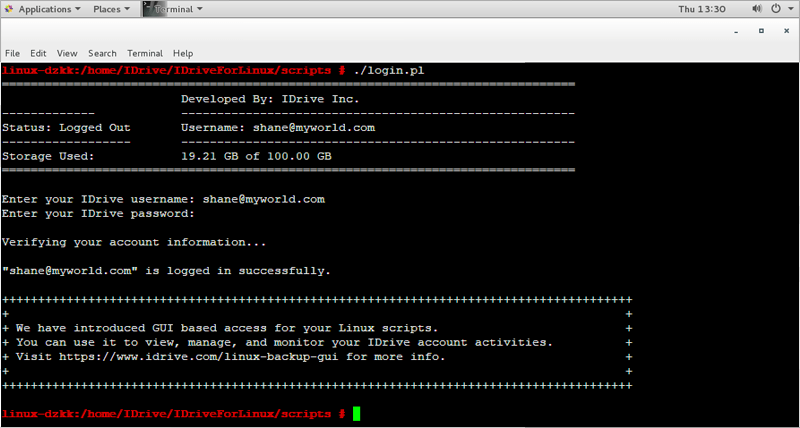

If you are not logged in to your IDrive account while setting up your script bundle, run the below command to login: $./login.pl Note:
  • Login script is a mandatory script to be executed before performing any operation. This script will authenticate your IDrive account details and will create a secure session for your backups.
  • When you try to authenticate an IDrive account using email address, it will prompt the username list which is associated with that email address. Then you have to select the particular username to authenticate.

Login

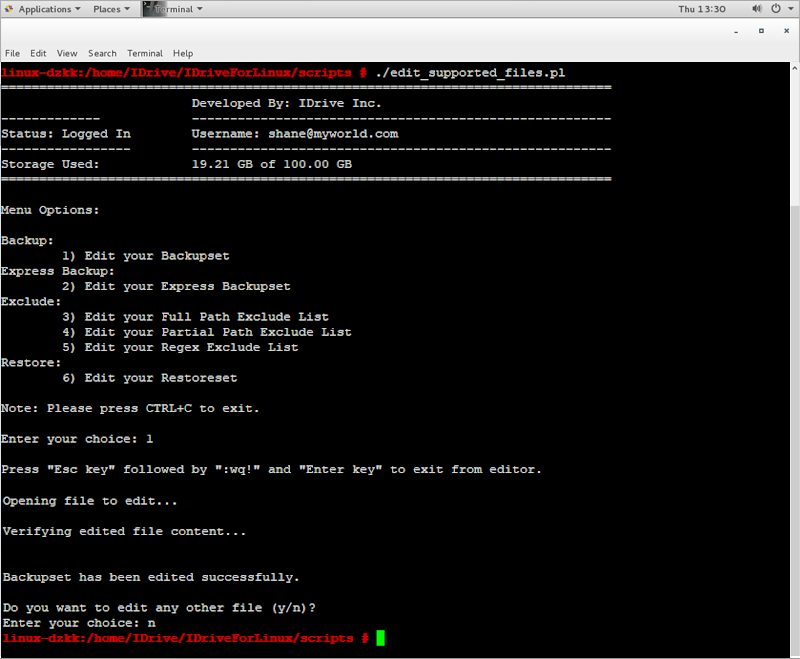

Edit your backup-set/express backup-set/restore-set, and exclude files

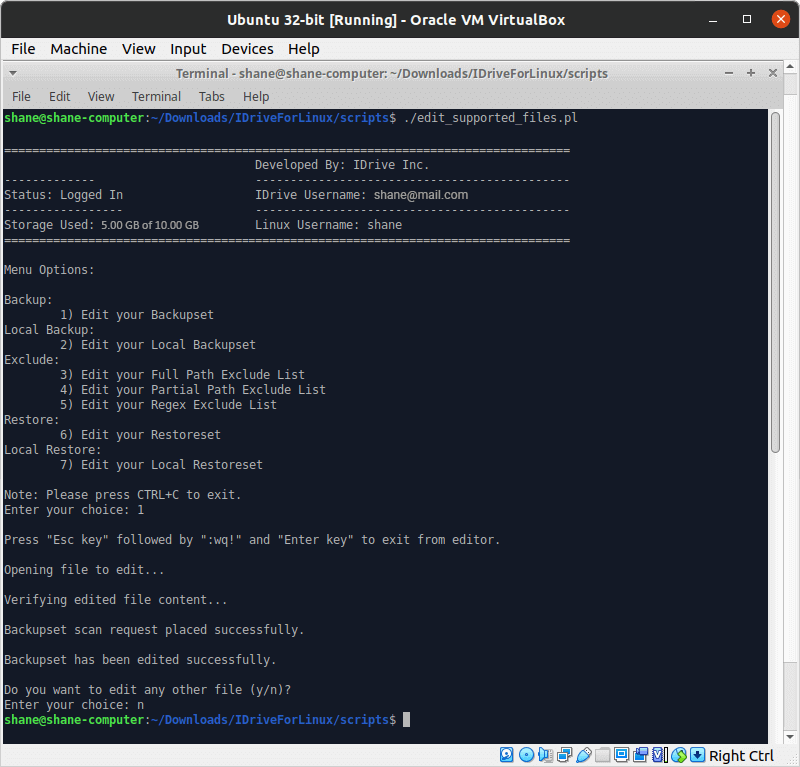

Before starting any backup/express backup/restore operation, the user must add the list of files/folders required for each operation in the backup/express backup/restore set file. To update these details in the backup/express backup/restore set file, you must execute the below command: $./edit_supported_files.pl The menu option will be displayed. Select option 1 to edit the backup set file. Respective file will open in the text editor to edit. Add the files/folders that need to be backed up. editSupportFiles
Using the same script you can update backup set, express backup set, restore set and exclude files by selecting the desired option.
Exclude Files/Folder from your backup set By using the Exclude option of edit-supported file script, you can exclude files/ folders from being backed up to your IDrive account.
  1. Full Path Exclude
  2. Partial Path Exclude
  3. Regex Exclude

Full Path Exclude

To exclude files/folders with full path,

  1. Run 'edit_supported_files.pl' script and select option 'Edit Your Full Path Exclude List'. The 'FullExcludeList.txt' file will open in a text editor.
  2. Add full path of the files/folders that you wish to exclude.
  3. Enter each item in a new line.
  4. Save and exit.

Example:

Your Backupset contains /home/Documents and if you want to exclude /home/Documents/temp, enter the folder path ie: '/home/Documents/temp' in FullExcludeList file.

Partial Path Exclude

To exclude files/folders with partial path,
  1. Run 'edit_supported_files.pl' script and select option 'Edit Your Partial Path Exclude List'. The 'PartialExcludeList.txt' file will open in a text editor.
  2. Add partial name of the files/folders that you wish to exclude.
  3. Enter each item in a new line.
  4. Save and exit.

Example: Your Backupset contains /home/Documents and if you want to exclude all the pst files from this folder like /home/Documents/designtutorials.pst, /home/Documents/new.pst, /home/Documents/James/tutorials.pst etc, then enter 'pst' in PartialExcludeList file.

Regex Exclude

To exclude files/folders based on regex pattern,

  1. Run 'edit_supported_files.pl' script and select option 'Edit Your Regex Exclude List'. The 'RegexExcludeList.txt' file will open in a text editor.
  2. Add the regex pattern of the files/folders that you wish to exclude.
  3. Enter each item in a new line.
  4. Save and exit.

Example:

Your Backupset contains /home/Folder01 , /home/Folder02, /home/FolderA, /home/FolderB. If you want to exclude all folders/files that contain numeric values in the name, i.e. /home/Folder01, /home/Folder02, then enter 'Folder\d+' in RegexExcludeList file.

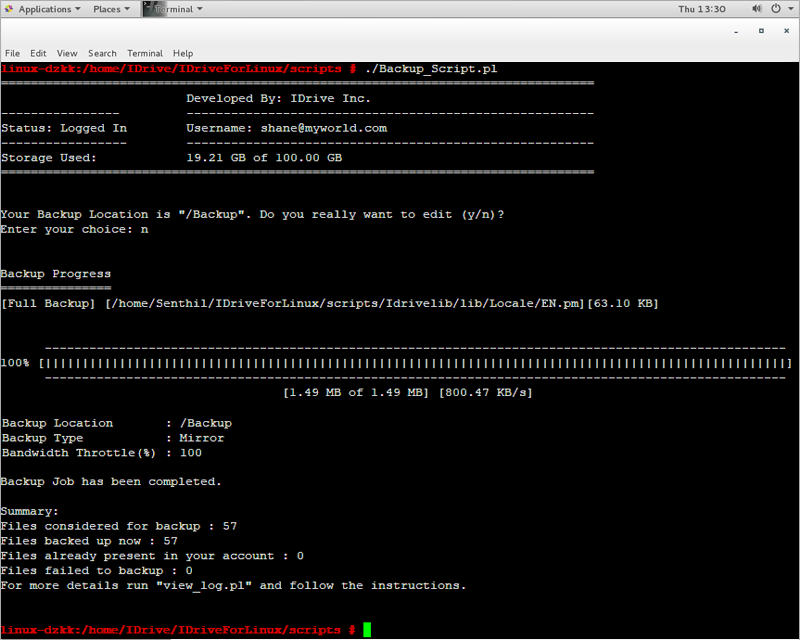

Immediate/Manual backup

You can perform immediate/manual backup using the below command: $./Backup_Script.pl When you run your backup script, it will reconfirm your backup location and allow you to change it. You can now view the graphical progress bar for your data getting backed up. If you want your script not to ask for backup location and not to display progress bar then you can always use “--silent” flag with this command. Backup Note: For some IDrive accounts this script will not provide an option to change 'Backup location'.

Immediate/Manual express backup

You can perform immediate/manual express backup using the below command: $./express_backup.pl Using this script, you can backup your Linux machine data to the express device shipped to you. Once the data is backed up, you can ship this express device back to us and within a week your data will be available in your IDrive account. For more details on express, visit IDrive Express™ for Linux.

Immediate/Manual restore

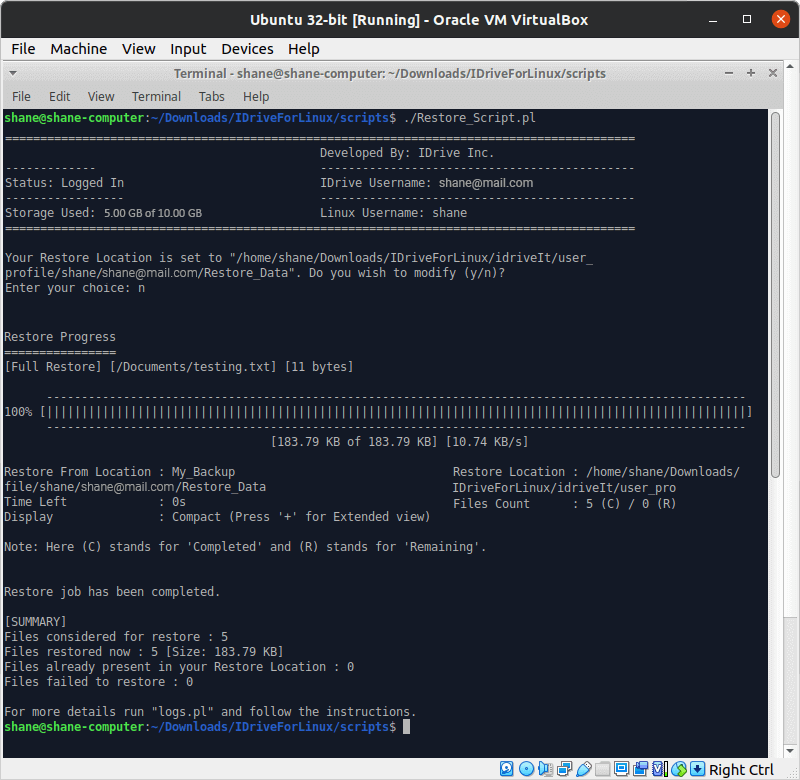

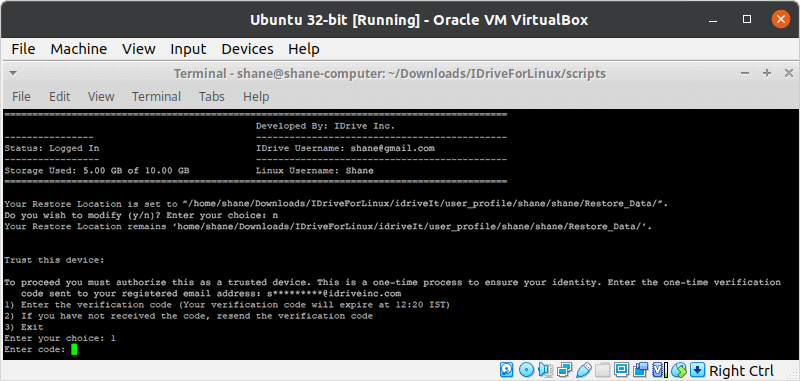

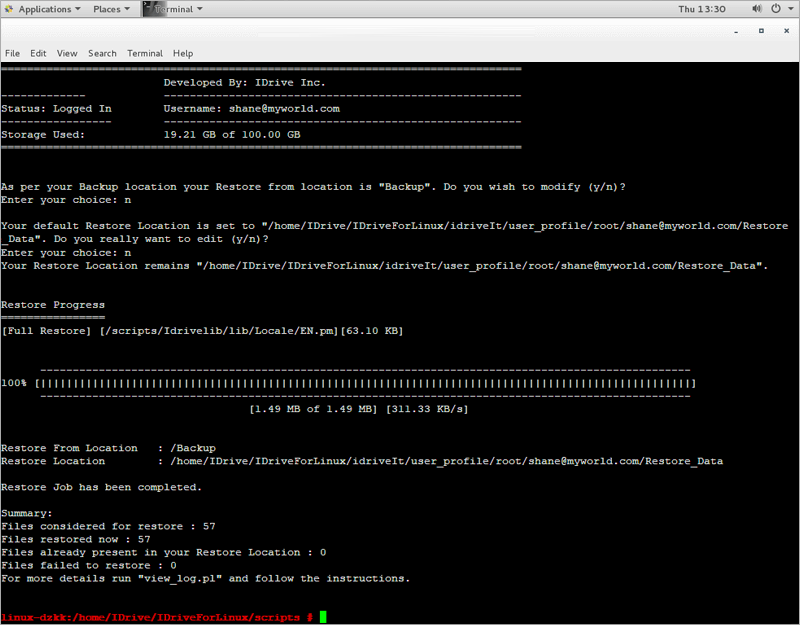

You can perform immediate/manual restore using the below command: $./Restore_Script.pl When you run your restore script, it will reconfirm your restore and restore from location and will allow you to change it if required. You can now view the graphical progress bar for your data getting restored. If you want your script not to ask for restore location, restore from location and not to display progress bar then you can always use “--silent” flag with this command. restoreScript Note: For some IDrive accounts, users will not be able to edit 'Restore From' manually and have to select 'Restore From' location from the list of existing locations.

Schedule backup/express backup/archive cleanup / CDP job

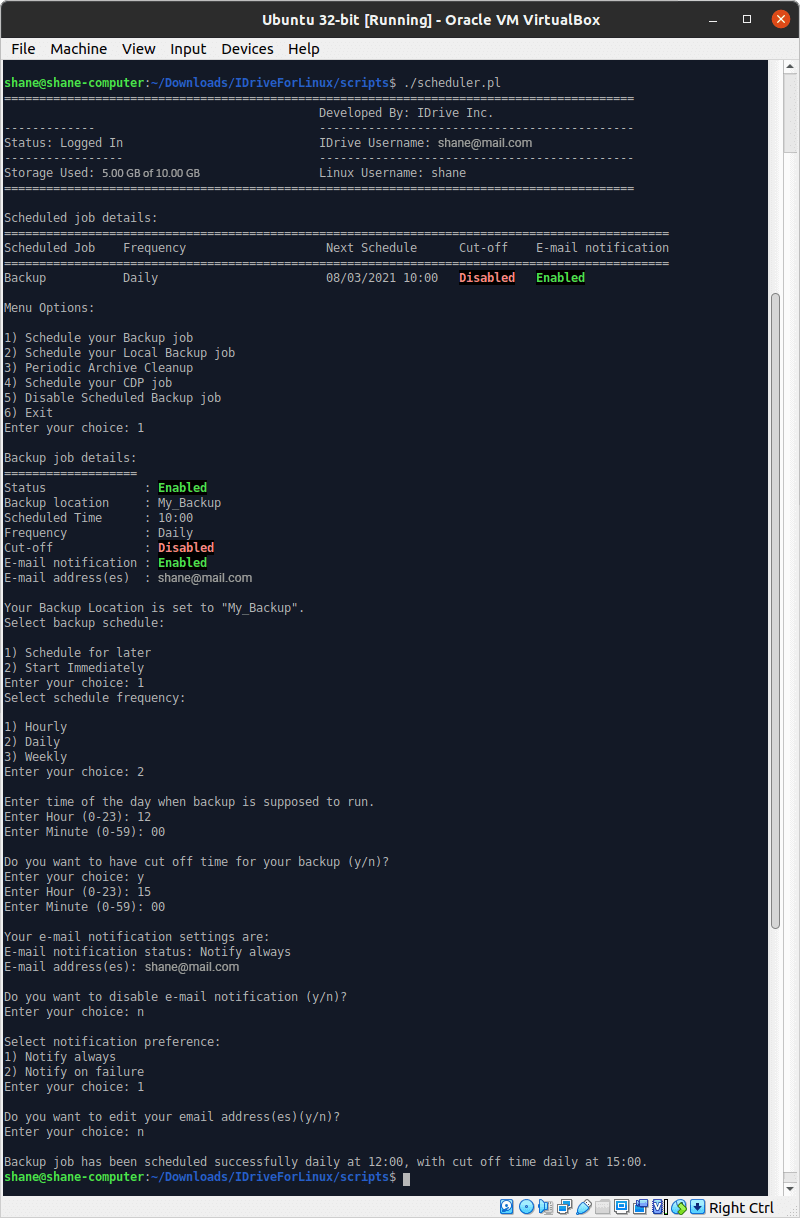

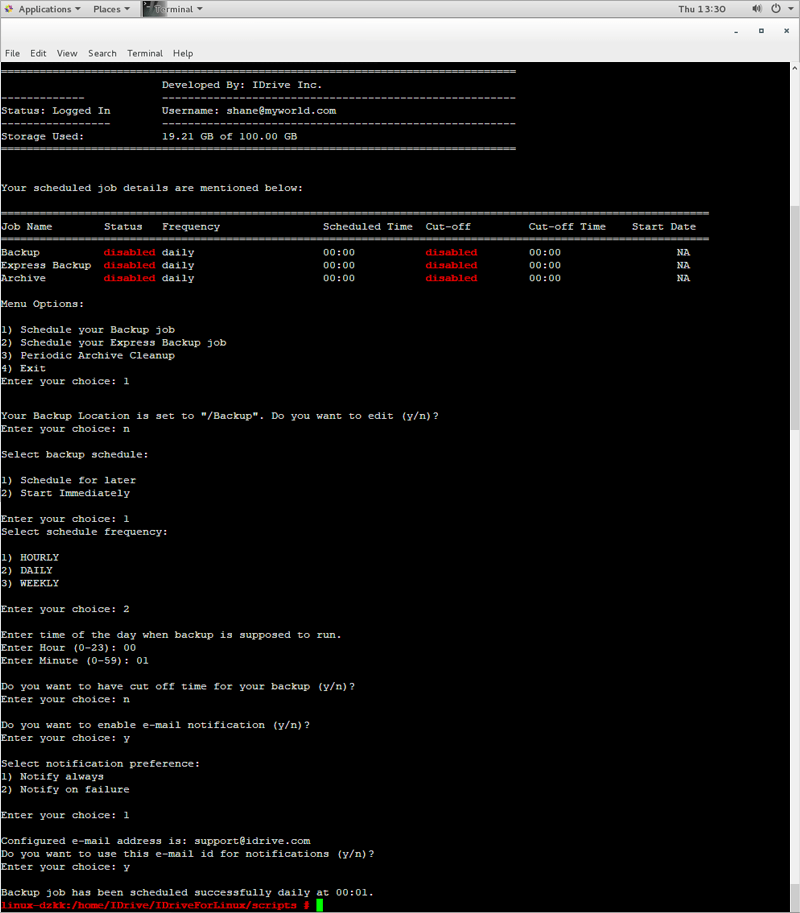

Run the below command to manage your schedule backup/express backup/archive cleanup/CDP job: $./scheduler.pl Select the desired menu option to create, edit, view or delete your schedule backup / express backup / archive cleanup / CDP job and follow the instructions. In case you want your scheduled job to stop automatically at a scheduled time then set the cut-off time as well, while following the instructions. Schedule Screen

View progress of scheduled backup / express backup / periodic archive cleanup / CDP job

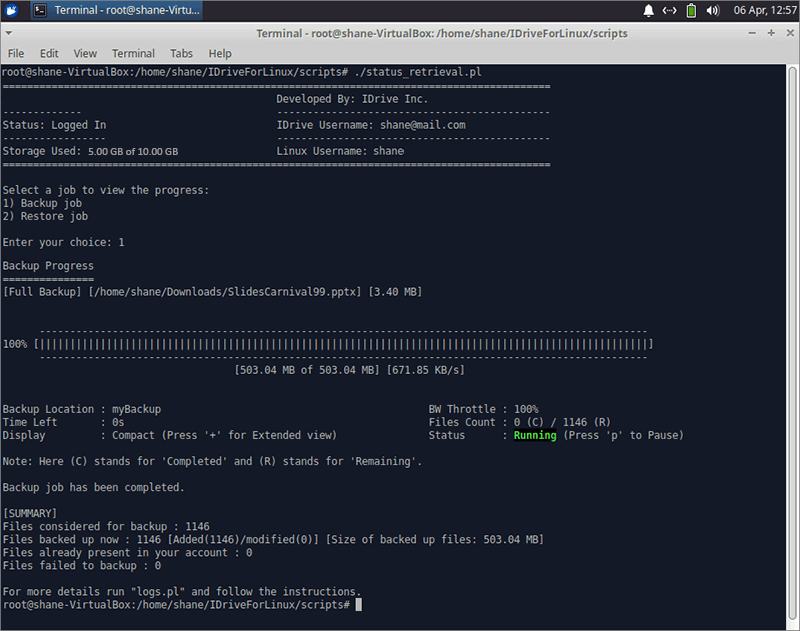

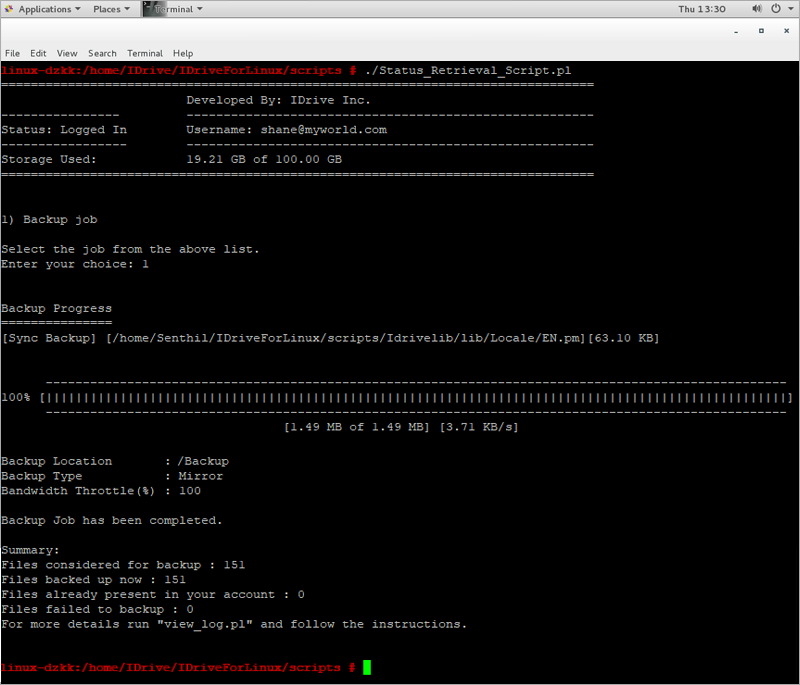

To view the progress of scheduled backup / express backup / periodic archive cleanup / CDP job, run the below command. The progress will be displayed in a compact view by default. You can pause the ongoing backup or express backup job by using “p” key and resume using “r” key. You can also view the number of files completed and remaining for backup using files count displayed under the progress bar. Progress bar can be displayed in two modes – Compact and Extended. Compact display will display consolidated results from all the engines involved in the operation. Extended display will display the progress bar for each running engine and users can find out the files getting backed up with each engine and the total number of engines involved in the operation. $ ./status_retrieval.pl restoreScript

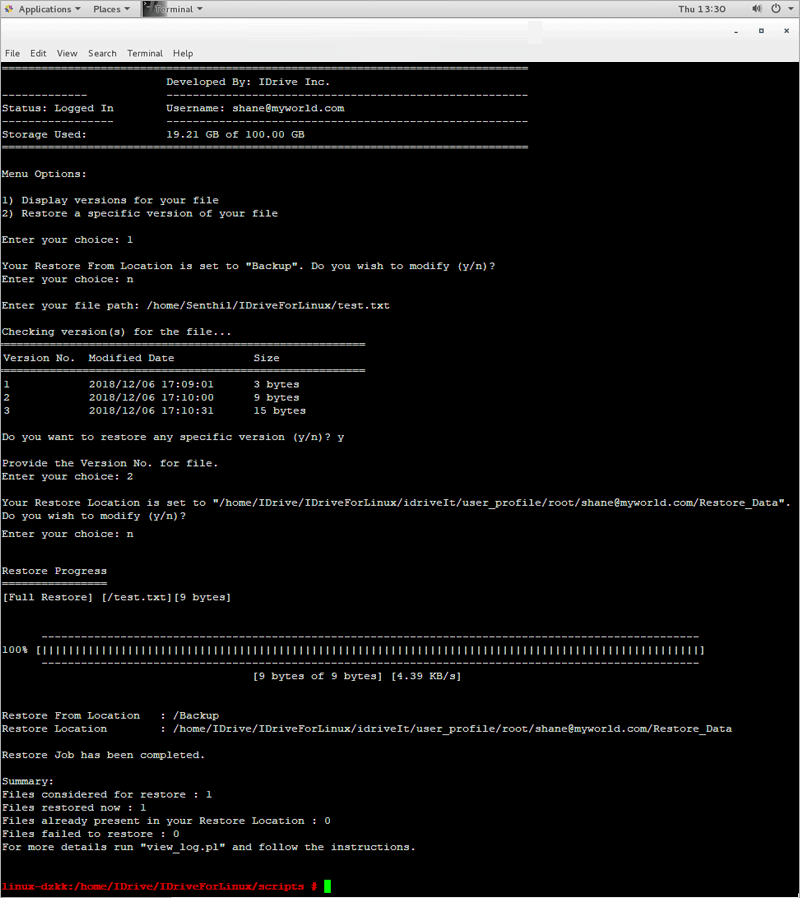

View/restore previous versions of a file

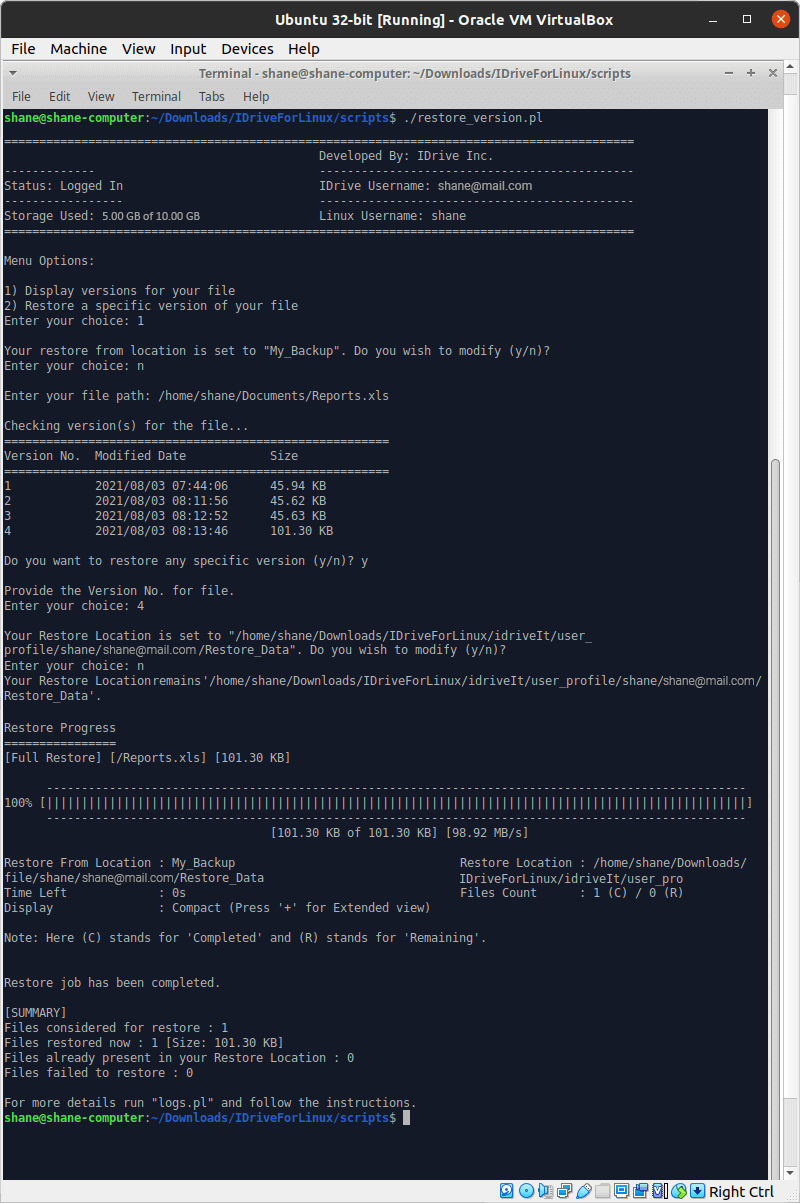

You can view the list of previous versions of any file and select any version that you want to restore. To retrieve a file with earlier versions, run the below command: $./restore_version.pl restoreScript Note: For some IDrive accounts, users will not be able to edit 'Restore From' location manually and have to select 'Restore From' location from the list of existing locations.

Stop ongoing backup/express backup/restore/archive cleanup/CDP operations

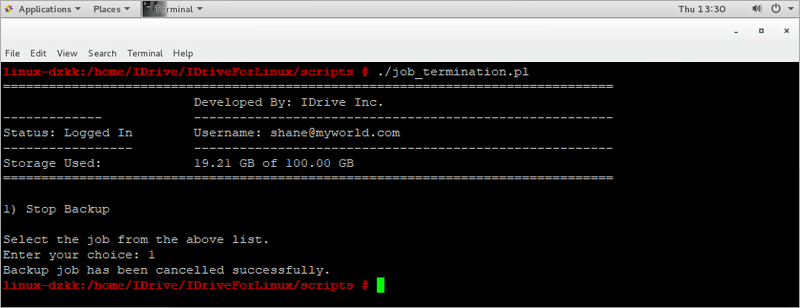

To stop an ongoing job (backup / express backup / restore /archive cleanup / CDP), run the below command: $./job_termination.pl jobTermination

View/Delete operation logs

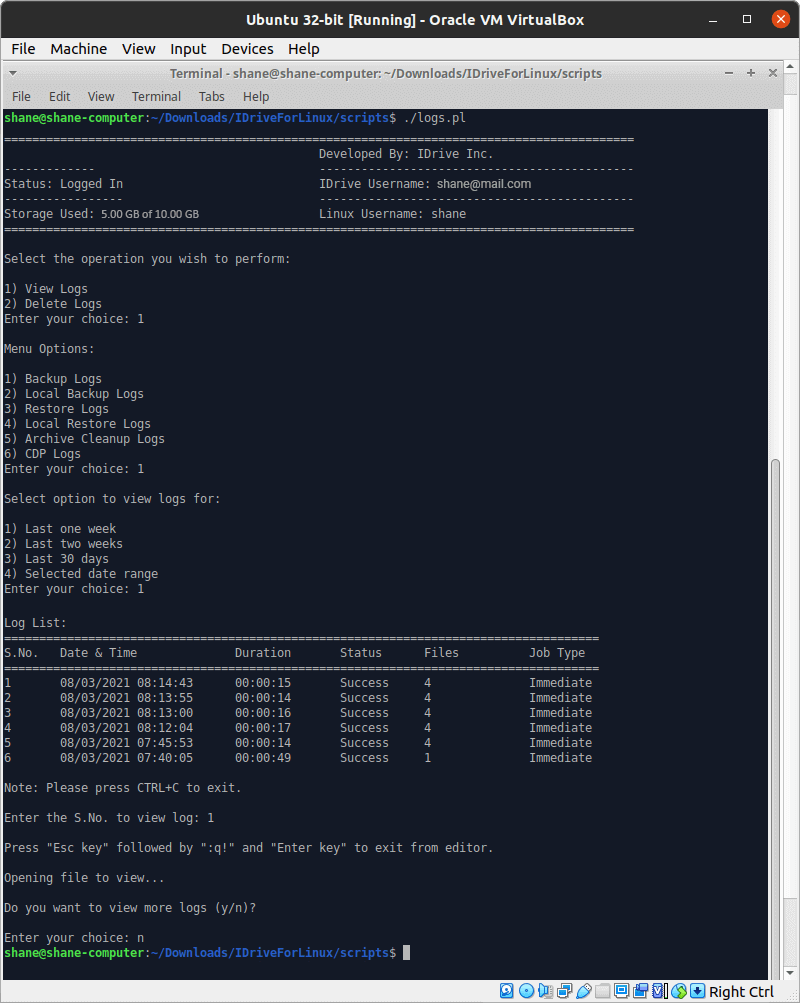

You can view or delete the logs for backup, express backup, restore, archive cleanup and CDP operations using the below command: $./logs.pl viewLog

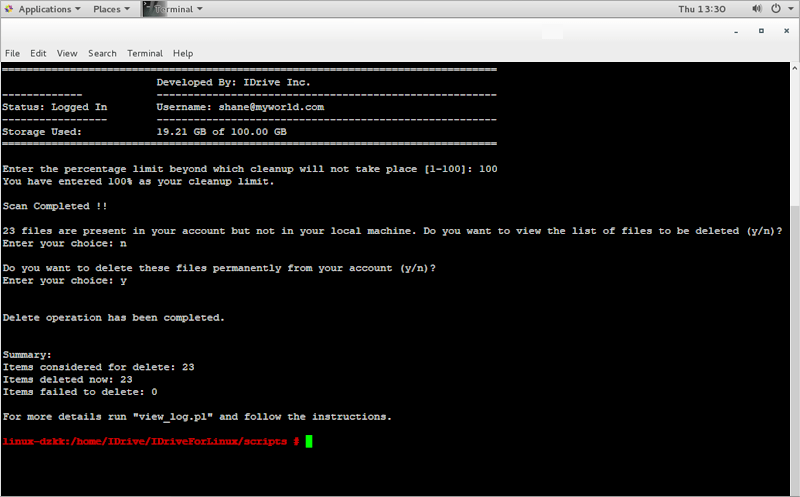

Archive cleanup

Archive Cleanup compares the files of your local storage, selected for backup, with the files in your IDrive online backup account. It then deletes the files present in your account but not on your local machine. This feature thus helps you to free up space in your online backup account. To perform archive cleanup run below command: $./archive_cleanup.pl When you run the script to perform archive cleanup, you can enter a percentage of the total no. of files to be considered for deletion. This percentage based control helps to avoid large-scale deletion of files in your account. We have provided an option to delete empty directories present in your account based on your selected backup set. If a user chooses to delete the empty directories then we gather a list of all empty directories and delete them post file delete operation. Users will be able to view the detailed log for empty directory delete too in user log.We have introduced an email notification feature for periodic cleanup operations too. Now users can schedule an email notification to get an update on the periodic cleanup operation performed. Archive Cleanup

Send error report

You can send error report to IDrive support by running the below command: $./send_error_report.pl viewLog

Log out from your IDrive account

To end the logged in session for your IDrive account, run the below command: $./logout.pl You must logout (optional) from the account to avoid any unauthorized access to your IDrive account. After logout, you need to login again to perform most of the operations.

Note: Your scheduled backup / scheduled express backup / periodic cleanup / CDP jobs will run even after you log out.

Updating your script bundle

When a script gets executed, a header appears, which provides details of logged in IDrive account. Same header also displays information on any newly available script bundle. If Software Update Notification is enabled, you will see the message. A new update is available. Run check_for_update.pl to update to the latest package, indicating a new improved version of script bundle has been released. To update to most recent available script bundle please perform the below command and follow the instructions: $./check_for_update.pl checkForUpdate

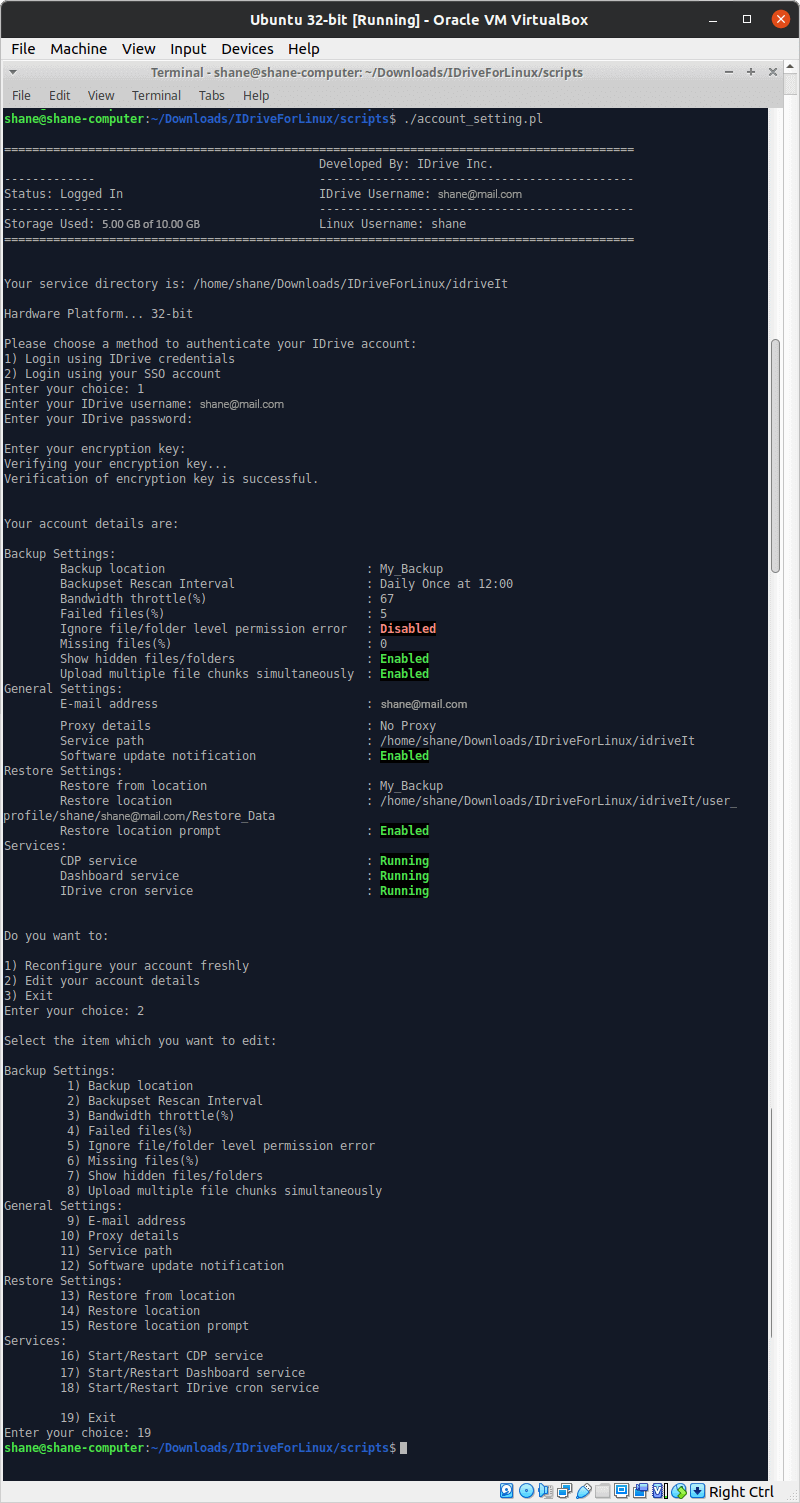

Edit user details

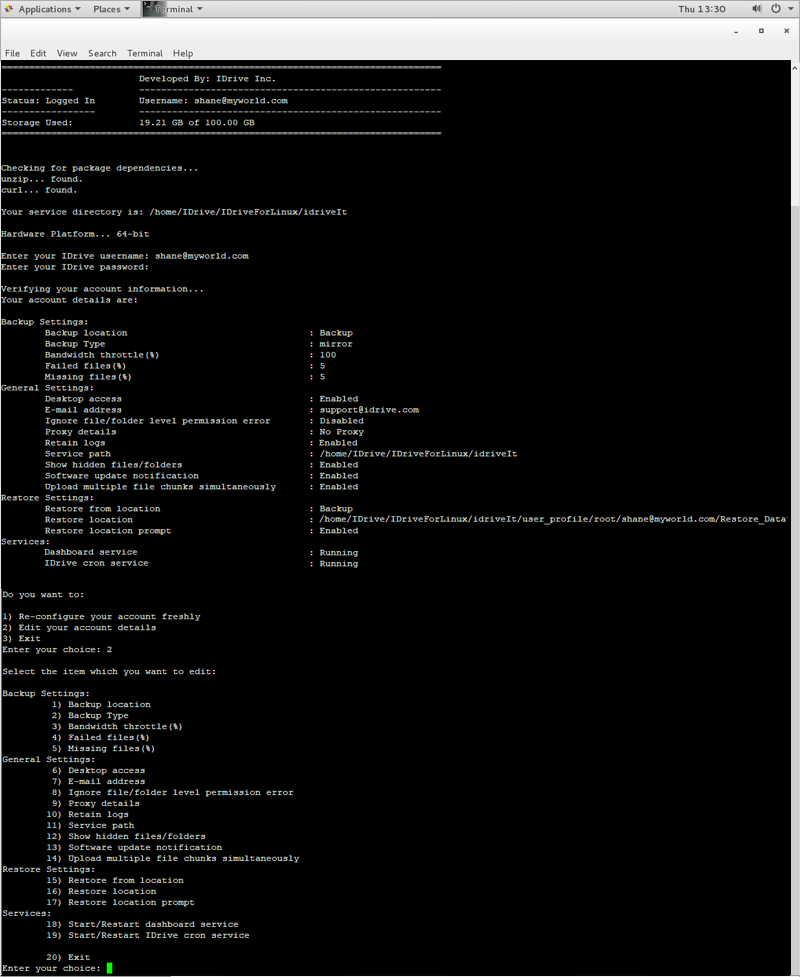

In case you want to reconfigure your IDrive account locally due to any reason or want to edit user details locally for your configured IDrive account then please perform the below command. $./account_setting.pl Only if your account is already configured in the current machine, you will find the menu which will allow you to reconfigure your IDrive account locally or will allow you to edit the user details locally for your IDrive account. You can configure the following settings:

Backup Settings:

  • Backup Location: Update the backup location using this option.
  • Backup Type: Change the backup type from mirror to relative and vice versa using this option.
  • Backupset Rescan Interval: Change the backupset rescan interval.
  • Bandwidth throttle(%): Set the Internet bandwidth to be used by the scripts for backups using this option.
  • Failed files(%): By default failed files % to notify backup as 'Failure' is set to 5%. If the total files failed for backup is more than 5%, then backup will be notified as failure. Change the default setting using this option.
  • Ignore file/folder level permission error: If your backup set contains files/folders that have insufficient access rights, IDrive will not backup those files/folders. Hence in such a case, by default, your backup will be considered as 'Failure'. To ignore file/folder level access rights/permission errors, enable this setting.
  • Missing files(%): By default missing files % to notify backup as 'Failure' is set to 5%. If the total files missing for backup is more than 5%, then backup will be notified as failure. Change the default setting using this option.
  • Show hidden files/folders: Disable this setting to skip hidden files/folders from backup.
  • Upload multiple file chunks simultaneously: Enable this option to upload multiple file chunks simultaneously to improve overall data transfer speed.

General Settings:

  • E-mail address: Use this option to change the email address provided at the time of account setup locally.
  • Proxy details: If you are behind a proxy address, you should update the proxy settings using this option.
  • Service path: Update the service path used by IDrive scripts using this option.
  • Software Update Notification: Enable this setting to get a notification for available updates in script header.

Restore Settings:

  • Restore from location: Use this option to change the location from where backups will be restored.
  • Restore location: Use this option to change the restore location.
  • Restore Location Prompt: Enable this setting if you wish to receive notification about the restore location before starting restore.

Services:

  • Start/Restart CDP service: Use this option to start/restart the CDP service. This service is responsible for CDP jobs to work as expected.
  • Start/Restart dashboard service: Use this option to start/restart the dashboard service. This service must be up and running for your machine to be remotely managed from the Dashboard.
  • Start/Restart IDrive cron service: Use this option to start or restart IDrive cron service. This service is responsible for all the scheduled jobs to work as expected.
Select the desired option and follow the instructions. editUserDetails Note:
  • For some users, while re-configuring or editing account, 'Backup Type' will not be displayed and also while editing 'Restore From' location, list of devices will appear.
  • For some users, while editing their account, the ‘Desktop access’ option might appear. Enable this option to access your computer via dashboard.

Test the backup speed

To test the upload speed of the backup, run the following command: $./speed_analysis.pl linux-speed This script is used to analyze the upload speed for your machine backing up the data to the IDrive servers. A sample text file is uploaded to your IDrive account to calculate the upload speed via IDrive scripts. File backed up for testing will be deleted automatically once the upload speed is determined. Alternatively, it will test the upload speed via speedtest.net and the speed analysis result will be sent to IDrive support based on your confirmation for further investigation.

Uninstalling your script bundle

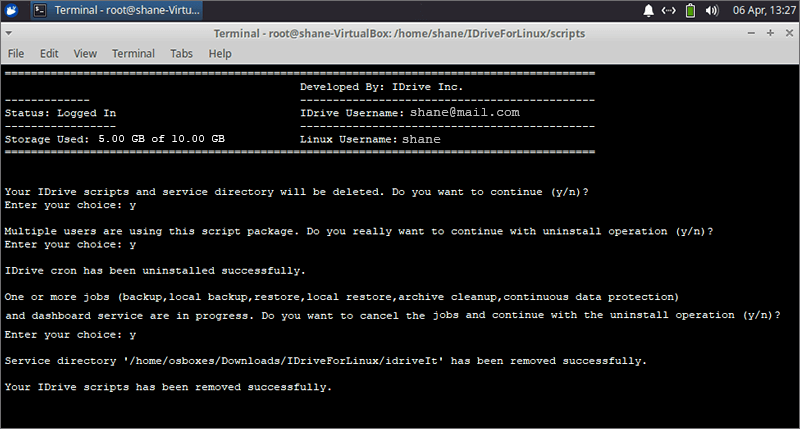

Uninstalling the script package from your system will leave the files/folders of your system liable to digital disasters. To uninstall the script bundle, run the below command and follow the instructions. $./Uninstall_Script.pl This script will automatically remove all IDrive package files and other dependency files. It will also stop all IDrive specific services and cleanup the scheduled backup/express backup/restore/periodic cleanup/CDP jobs if any.
