Frequently Asked Questions

General

If your question is not addressed below, please contact us through our feedback form and we'll get back to you shortly.

How do I delete a client machine from the IDrive BMR server?
Can I perform power operations of BMR server via web interface?
Can I view and change my profile information?
What operations can I perform from BMR web console?
Which network ports are to be used for IDrive BMR server and client computer?
What information is displayed under 'Capacity'?
How do I perform manual cleanup of storage space of IDrive BMR server?
What is the hardware configuration of the IDrive BMR server?
How do I configure network settings for my IDrive BMR server?
Is it possible to change the time zone for the IDrive BMR server according to my location?
What happens when I reset the network settings?
Is the data backed up to IDrive BMR server reliable for restore?
What are the system requirements for IDrive BMR?
What does the 'Firewall Checkpoint' do?
I am unable to save the mail settings. Why is it?
How do I connect a specific client machine to the IDrive BMR server?
Are the settings for physical machines and VMware machines different?
Are backup settings and global server settings applicable for VMware machines?
Can I link my BMR cloud account with my IDrive account?



How do I delete a client machine from the IDrive BMR server?

Before you delete a client machine from the server, we recommend you to uninstall the Agent software from the machine and then remove it. If you remove the machine without uninstalling the Agent software, the server will detect the Agent and add the client machine again to backup.

To remove a client machine from the server,

  1. Login to IDrive BMR server web interface. The list of client machines appear under the 'Clients' tab.
  2. Perform any of the following operations:
    1. To remove multiple client machines, select the machines, click 'With Selected' and click 'Remove'.
    2. Click displayed at the left of the computer name and select 'Remove' from the from the drop-down menu.
  3. Click 'Ok' in the confirmation window.
The selected computer will be removed during the scheduled cleanup operation performed by IDrive BMR server. You can click 'Stop removing client' within the cleanup operation to retain the computer.



Can I perform power operations of BMR server via web interface?

Yes, you can perform power operations of BMR server from 'Settings' tab via web interface. Go to 'Settings'->'Control Panel' -> 'Power Options'.

Following are the two available power options:

  1. Restart - Click this to restart the server
Restart Option
  1. Shutdown - Click this to shutdown the server
Shutdown Option



Can I update my profile information?

Yes, you can change your email address and password from the IDrive BMR server web interface.

To change the password,

  1. Click username displayed on the top-right corner of the page and click 'Change Password'.
Change Password
  1. Enter the new password and confirm the same in the respective fields in 'Change Password' window.
Change Password
  1. Click 'Change Password'.



What operations can I perform from BMR web console?

The web console lets you access IDrive BMR server, add your computers to the server and manage their data backups/restores from anywhere.

Also, you can:



Which network ports are to be used for IDrive BMR server and client computer?

Following network ports are to be used for IDrive BMR server and client computer.

For IDrive BMR server:

Port Usage Incoming/Outgoing
55414 HTTP web interface Incoming
35623 UDP broadcasts for discovery Outgoing

For client computer:

Port Usage
35622 UDP broadcasts for discovery
35623 Commands and image backups



What information is displayed under 'Capacity'?

The 'Capacity' section displays information about storage space of IDrive BMR server. The utilized and remaining storage space are displayed in percentage so that you can track your utilization and also perform manual cleanup.

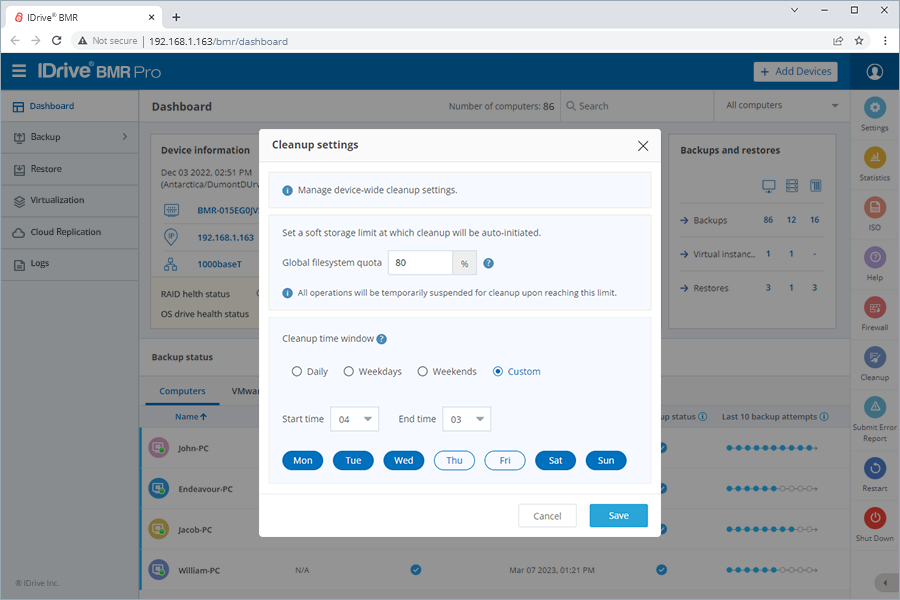

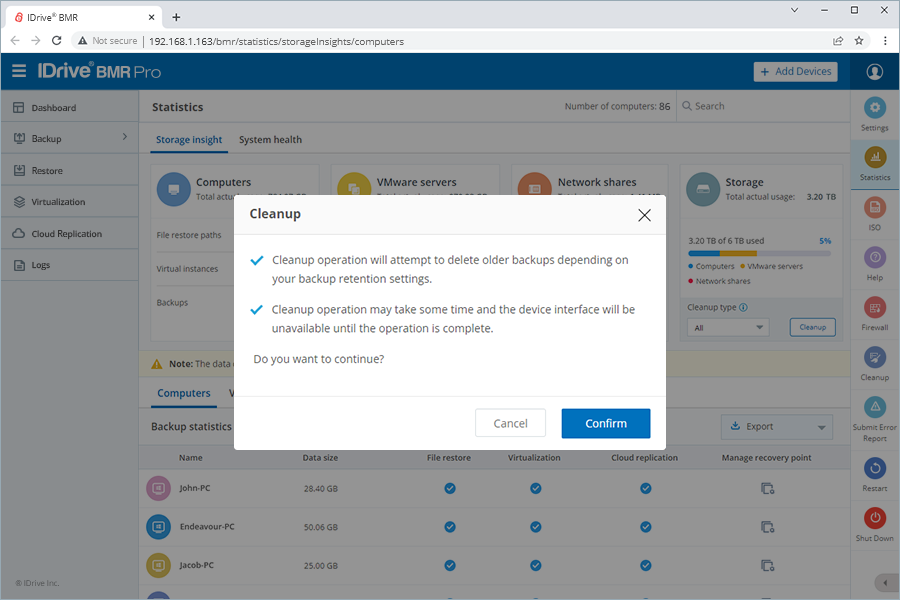

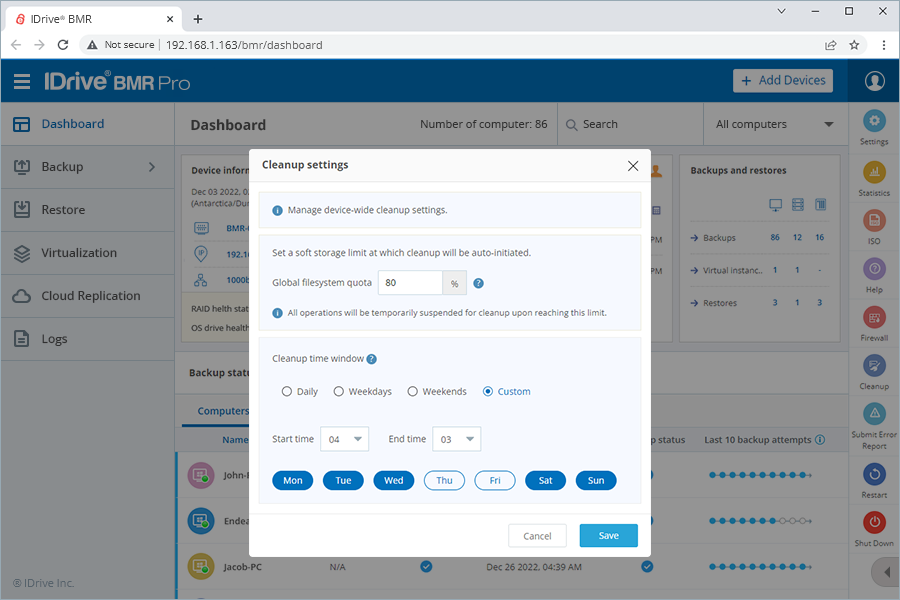

How do I perform manual cleanup of storage space of IDrive BMR server?

You can perform manual cleanup only when you have utilized 80% of storage space. An option to perform manual cleanup with a drop-down to select the percentage of storage space to cleanup will be enabled.

To perform manual cleanup,

  1. Log in to IDrive BMR server web interface and click 'Statistics' -> 'System Health'.
  2. Select the percentage of storage space to cleanup from 'CleanUp Percentage' drop-down list.
  3. Click 'Cleanup'.
  4. Click 'Confirm' in the confirmation window.

Note: During manual cleanup the server will restart couple of times and the web interface will be unavailable.

Storage Volume



What is the hardware configuration of the IDrive BMR server?

The IDrive BMR server is designed for better performance and reliability, therefore hardware components are chosen accordingly. It is optimized to support the backup appliance and its workload.

The hardware configuration details of the IDrive BMR server for 6TB models or higher include the following:

  • Processor: Features Intel Xeon series CPUs
  • Memory: Latest DDR4 memory modules with ECC

    Note: Error-correcting code memory (ECC memory):

  • ECC memory is a type of computer data storage that can detect and correct the most common kinds of internal data corruption. It is mainly used in scientific or financial computing to prevent data corruption.
  • Storage Drives: Enterprise-grade storage hard drives are used for best performance and high reliability
  • Network: Features two network Ethernet ports to provide redundancy
  • Power Supply: The server is equipped with a server grade power supply known for high reliability
  • Form Factor: It is rack mountable and ideal for your existing server rack infrastructure

The hardware configuration details of the IDrive BMR server for 4TB models include the following:

  • Processor: Features Intel Core CPUs
  • Memory: Non-ECC DDR4 memory modules
  • Network: One network Ethernet port
  • Power Supply: Desktop grade Power Supply
  • Form Factor: Mini tower

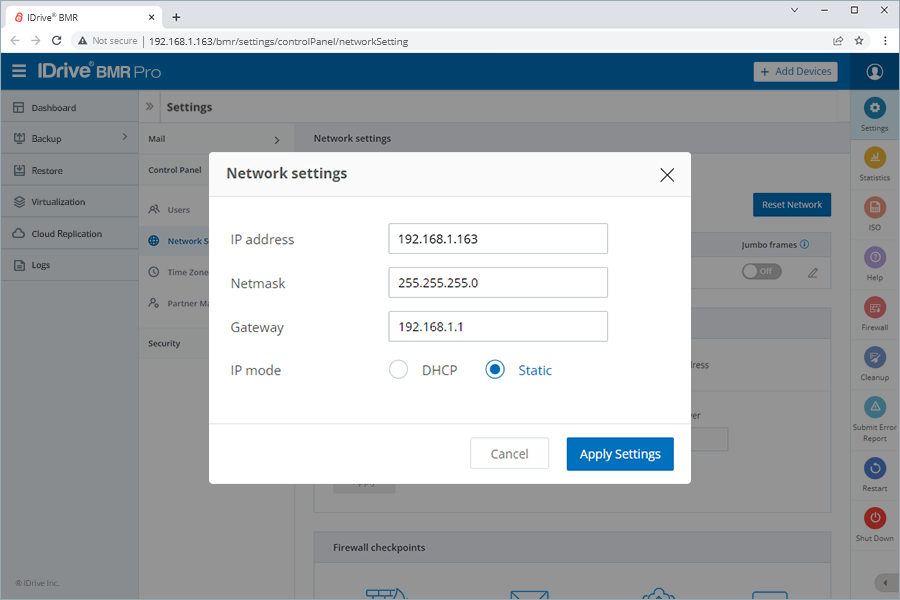

How do I configure network settings for my IDrive BMR server?

During the initial login, by default the server will be configured to DHCP mode. You can change the default settings from the 'Settings' tab.

To change the network settings,

  1. Login to the IDrive BMR server web interface.
  2. Go to the 'Settings' tab and click 'Control Panel'.

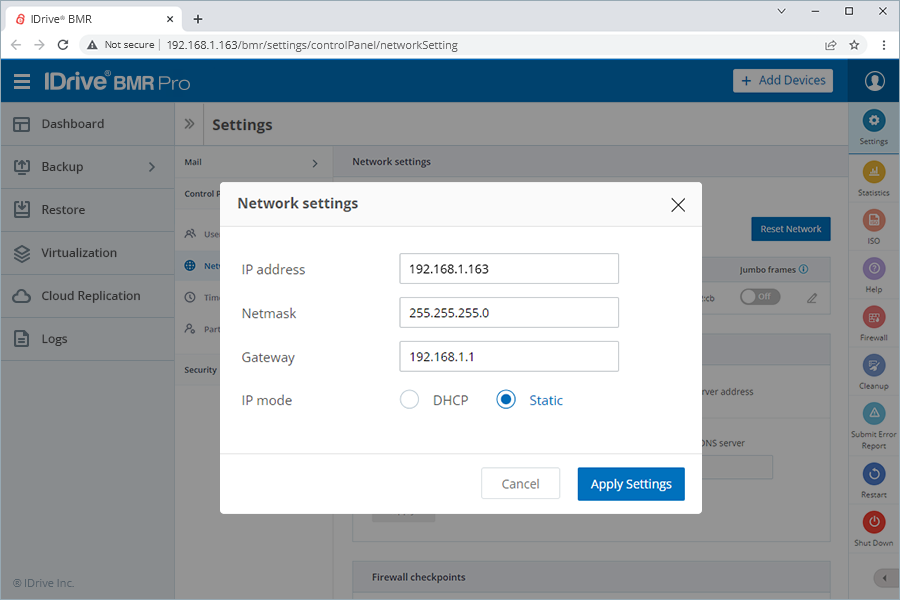

  3. Under 'Network Settings' tab, click against the required ethernet port entry. The 'Network Settings' window appears.
  1. Select 'IP Mode' as 'Static' and provide the required information such as IP address, Netmask and Gateway in the respective fields.
  2. Click 'Apply Settings'.

To change the DNS settings,

  1. In the 'Network Settings' tab, select 'Use the following DNS server address' under 'DNS settings' section.
  2. Provide primary and secondary DNS server address in the respective fields and click 'Apply'.

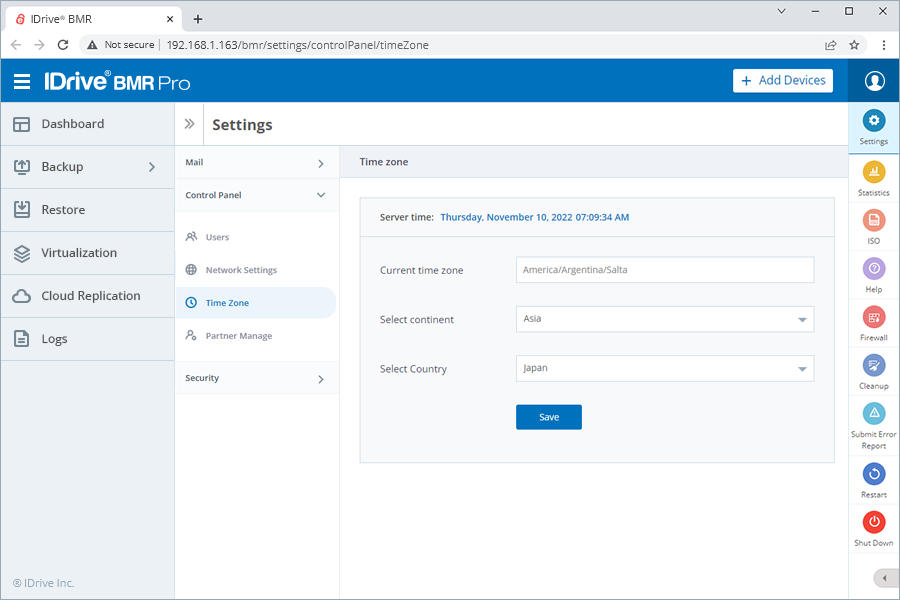

Is it possible to change the time zone for the IDrive BMR server according to my location?

Yes, you can change the time zone for the IDrive BMR server according to your location.

To change the time zone,

  1. Login to the IDrive BMR server web interface.
  2. Go to the 'Settings' tab and click 'Control Panel'.
  3. Go to 'Time Zone' tab and choose your region from the 'Select Time Zone' drop-down list.
  4. Select your country and zone.
  5. Click 'Save'.



What happens when I reset the network settings?

When you click 'Reset Network' under the 'System Settings' tab, the following actions take place:

  • Both the network interfaces on this server will be set to DHCP mode.
  • Server will reboot to apply the changes. Ensure no backups are in progress at this time.
  • After reboot, the server will try to obtain DHCP provided IP from your network.



Is the data backed up to IDrive BMR server reliable for restore?

Yes, all the data backed up to IDrive BMR server is reliable for restore. To ensure reliability of the backed up data, IDrive BMR server runs an immediate data integrity check after each volume is backed up. You can check the backup integrity status from the 'Dashboard' tab in the IDrive BMR server web interface. The data integrity check ensures that only the reliable copies of data are stored during backup and can be restored.



What are the system requirements for IDrive BMR?

IDrive BMR currently supports Bare-Metal backup only from client computers running on Windows OS.

Following are the system requirements for IDrive BMR:

Operating Systems:

  • Windows Vista (with all windows updates installed)
  • Windows Server 2008 (with all windows updates installed)
  • Windows Server 2008 R2
  • Windows 7
  • Small Business Server 2011 (with all windows updates installed)
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows Server 2012
  • Windows Server 2012 R2

Filesystem:

  • IDrive BMR supports backup from only NTFS formatted volumes

Disk Partition Style:

  • MBR
  • GPT
Note:
  1. You can backup dynamic or logical volumes in MBR disk. However, Bare-Metal Restore of these volumes is not supported. You can still recover data from these backed up volumes by using the 'File Restore' option. Refer steps to recover backed up data using file restore option.
  2. Bare-Metal restore is not supported for the data backed up from client machines with RAID based storage. However, you can still perform file-level restore of the backed up data to the client machine.



What does the 'Firewall Checkpoint' do?

Firewall Checkpoint is a function within the BMR server that helps you check firewall restrictions, if any. Through this function, network restrictions on services such as email delivery, cloud replication and so on are identified.

To check these settings,

  1. Log in to the IDrive BMR server web interface.
  2. Click 'Settings' displayed on the menu bar.
  3. Go to the 'Control Panel' tab.
  4. Scroll down and click 'Check Now' in the Firewall Checkpoint section.

The status of the settings could be either of the following:

Successful - This means that there are no firewall restrictions and you can continue to use all services related to BMR. Successful - This means that there are no firewall restrictions and you can continue to use all services related to BMR.

Failure - This means that the port has been blocked Failure - This means that the port has been blocked.


Here are the port details. Contact your network admin to unblock the network firewall.

  • General Firewall Settings - Unblock Port '80' and Port '443' for 'www.idrive.com' and 'www1.idrive.com' servers.
  • Mail Settings - Check your Mail Server Port details and unblock the port, if blocked.
  • Cloud Replication - Contact the BMR support team to receive the Port details. Then share this information with your network admin to unblock the respective ports.

Contact your network admin to unblock the port if it is blocked.



I am unable to save the mail settings. Why is it?

This could be because the port number used to connect to the mail server may have been blocked. You can check whether the port is blocked or not from the BMR server.

To check whether the port is blocked,

  1. Login to the IDrive BMR server web interface.
  2. Click 'Settings' displayed on the menu bar.
  3. Go to 'Mail' -> 'Mail Server Settings' tab.
  4. Click 'Firewall Check Now'.

Contact your network admin to unblock the port if it is blocked.



How do I connect a specific client machine to the IDrive BMR server?

Download the IDrive BMR installer on your machine. During installation, the installer will prompt you to enter a Server Identity Key.

Follow these steps to add the identity key and begin backup:

  1. Log in to the IDrive BMR server web interface.
  1. On the right-corner of the 'Physical Machines' tab, click the 'Add Client' button.
  1. The Server's Identity Key along with the following message will be displayed.
  1. Enter the identity key in the ‘Enter the server identity key’ field on the IDrive BMR installer and click 'Next'.

Once this is complete, your backup will be automatically initiated.



Are the settings for physical machines and VMware machines different?

Mail settings and all control panel related settings for physical machines and VMware machines are common. However, backup settings and global server settings are applicable only for computers configured under physical machines.



Are backup settings and global server settings applicable for VMware machines?

No, backup settings and global server settings are only relevant for physical machines.

Can I link my BMR cloud account with my IDrive account?

If you have an IDrive Enterprise account and a BMR cloud account, you can contact BMR support to link both these accounts. This lets you directly access your BMR cloud account from IDrive, without the need to enter your BMR user credentials every time, to login.
