Flag-Assisted Error Correction on the FCC Lattice:
Tunable Distance at Constant Rate
Raghu Kulkarni
SSMTheory Group, IDrive Inc., Calabasas, CA 91302, USA
raghu@idrive.com
Abstract
The
[[3L
3
, 2L
3
+2, 3]]
CSS code on the Face-Centered Cubic (FCC) lattice achieves
67.7% encoding rate with weight-12 stabilizers, but its distance is capped at
d = 3
by weight-3 logical operators sitting at tetrahedral interstitial voids. These logicals
carry a geometric ngerprintone error per triad sheet, all three converging at a
known voidthat makes them detectable by a ag ancilla measuring the three-body
parity
Z
e
a
Z
e
b
Z
e
c
. The weight-3 logical ips this parity from
+1
to
−1
; the stabilizer
syndrome stays silent, but the ag sees it. Running
R
independent ag rounds
per syndrome cycle pushes the logical failure rate to
p
3+R
, so the eective distance
is simply
d
eff
= 3 + R
adjustable at runtime, with no changes to the code or its
logical count. At
R = 4
the FCC+ags code suppresses errors as well as a distance-7
surface code, while encoding 130 logical qubits at 29.0% rate versus 1 logical qubit
at 1.0%. An adaptive scheduling protocol cuts the ag overhead to under 0.1% of
measurement cycles at realistic noise levels.
Keywords:
quantum error correction, FCC lattice, ag qubits, code distance, CSS
code, Triadic Orthogonal Calculus
1 Introduction
Quantum error correction (QEC) sits on a stubborn trade-o between encoding rate and
code distance. The surface code [1, 2] can reach high distance, but it encodes just one
logical qubit per
O(d
2
)
physical qubitsrates below 1% at any useful distance. Recent
qLDPC constructions [3, 4] promise asymptotically good parameters, but they demand
non-local qubit connectivity that existing hardware cannot provide.
The FCC lattice code [5] strikes a dierent bargain: a CSS code with parameters
[[3L
3
, 2L
3
+2, 3]]
and 67.7% encoding rate, wired entirely through nearest-neighbor bonds
in three dimensions (
K = 12
). Stabilizers are uniform weight-12 and geometrically local.
The catch is the code distance:
d = 3
, set by weight-3 logical operators at each tetrahedral
void.
The known routes to higher distance all pay dearly in rate. Subsystem gauging [6, 7] folds
the weight-3 logicals into a gauge group, yielding
[[3L
3
, 2, L]]
a rate crash from 67% to
1
near zero. Lifted product constructions [3] need structured shift assignments and have
not been made to work on the triangle-dense FCC graph.
In this paper we take a dierent route. The weight-3 logicals, though invisible to the
syndrome, sit at known positions and ip a measurable parity. A ag ancilla at each void
catches them. The eective distance becomes
d
eff
= 3 + R
, where
R
is the number of ag
roundsa knob the classical controller can turn at will.
2 The FCC Code and Its Failure Modes
2.1 Code structure
The FCC lattice has coordination number
K = 12
. The 12 nearest-neighbor vectors
decompose uniquely into three orthogonal sheets of 4 (the
triad
τ = (4, 4, 4)
) [5]:
S
xy
: (±1, ±1, 0)
(4 vectors)
S
xz
: (±1, 0, ±1)
(4 vectors)
S
yz
: (0, ±1, ±1)
(4 vectors) (1)
Physical qubits reside on lattice edges.
Z
-stabilizers act on the 12 edges incident to each
vertex;
X
-stabilizers act on the 12 edges surrounding each octahedral void. Both have
uniform weight 12. For an
L × L × L
lattice with
L ≥ 4
even:
n = 3L
3
physical qubits,
k = 2L
3
+ 2
logical qubits, encoding rate
k/n → 2/3
as
L → ∞
.
2.2 The weight-3 failure mode
A tetrahedral void sits at the intersection of all three triad sheets (Fig. 1a). Three edges
one from each sheetmeet at the void:
ˆ
L
v
= Z
e
a
⊗ Z
e
b
⊗ Z
e
c
, e
a
∈ S
xy
, e
b
∈ S
xz
, e
c
∈ S
yz
(2)
This operator slips past every stabilizer check (each weight-12 stabilizer shares 0 or 2
qubits with
ˆ
L
v
) and lies outside the stabilizer groupit is a genuine weight-3 logical.
Every triangle in the FCC graph has one edge from each triad sheet, so all
N
void
= 4L
3
triangles are tetrahedral voids, each with its own independent weight-3 logical.
The upshot: a simultaneous
X
-error on
e
a
,
e
b
,
e
c
produces a perfectly silent syndrome
and quietly implements a logical operation. The standard decoder never knows.
3 Flag-Assisted Detection
3.1 The detection mechanism
Theorem 1
(Flag detection of weight-3 logicals)
.
A ag ancilla measuring the parity
Z
e
a
Z
e
b
Z
e
c
at a tetrahedral void detects the weight-3 logical operator
ˆ
L
v
with certainty.
2
1.5
1.0
0.5
0.0
0.5
1.0
1.5
x
1.5
1.0
0.5
0.0
0.5
1.0
1.5
y
1.5
1.0
0.5
0.0
0.5
1.0
1.5
z
e
a
(XY)
e
b
(XZ)
e
c
(YZ)
(a) Flag ancilla at a tetrahedral void
Origin
Flag ancilla
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
x
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
y
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
z
(b) Flag ancillas on the BCC dual lattice
Data qubits
Flag ancillas
Figure 1: (a) A single tetrahedral void in the FCC lattice. Three data qubits (large
circles, colored by triad sheet) sit at the vertices. The ag ancilla (gold square) occupies
the void center and couples to all three via CZ gates (dashed gold). (b) The augmented
lattice: FCC data qubits (blue circles) and ag ancillas at void sites (gold squares). Each
ag is degree-3; no long-range connections are introduced.
Proof.
In the code space, the vacuum parity at each void is
+1
:
⟨Ω|Z
e
a
Z
e
b
Z
e
c
|Ω⟩ = +1
(3)
After the weight-3 error
X
e
a
X
e
b
X
e
c
acts:
Z
e
a
Z
e
b
Z
e
c
· X
e
a
X
e
b
X
e
c
|Ω⟩
= (−1)
3
X
e
a
X
e
b
X
e
c
· Z
e
a
Z
e
b
Z
e
c
|Ω⟩
= −X
e
a
X
e
b
X
e
c
|Ω⟩
(4)
The parity eigenvalue has ipped to
−1
. The ag measurement detects this ip with
probability
1 − p
flag
, where
p
flag
is the ag ancilla measurement error rate.
The ag measurement circuit has depth 4:
1. Prepare ag ancilla in
|+⟩
.
2. Apply CZ
(f, e
a
)
, CZ
(f, e
b
)
, CZ
(f, e
c
)
.
3. Measure ag in the
X
basis.
Outcome
+1
: no weight-3 error. Outcome
−1
: weight-3 error detected at this void.
3
3.2 Eective distance
For the weight-3 logical to slip through, two things must go wrong at once: all three
data qubits at the void must err (probability
p
3
),
and
the ag measurement must miss it
(probability
p
flag
). With
R
independent ag rounds:
P
fail
= N
void
· p
3
· p
R
flag
(5)
If
p
flag
≈ p
(ag ancillas have the same error rate as data qubits):
P
fail
= N
void
· p
3+R
(6)
The error suppression exponent
3 + R
corresponds to an eective distance:
d
eff
= 3 + R
(7)
Increasing
R
costs extra measurement rounds but touches nothing on the quantum side
same code, same stabilizers, same logical qubits. Figure 4 shows the error suppression
and rate comparison.
3.3 Temporal ordering of errors
The ag earns its keep in one specic scenario. Consider the three ways a weight-3 logical
can assemble:
Case 1 (one at a time):
Edge
e
a
errs in round
t
1
,
e
b
in a later round
t
2
,
e
c
later still. Each
lone error triggers a syndrome, and the
d = 3
decoder xes it. The logical never forms.
Case 2 (two at once, then one):
Edges
e
a
and
e
b
err together; the syndrome res; the
decoder may miscorrect. But the residual trips the next ag measurement.
Case 3 (all three at once):
All three edges err in the same round. Syndrome: zero.
Only
the ag sees this.
The ag is therefore the last line of defense against the unique failure mode of the FCC
code.
4 Resource Analysis
4.1 Qubit overhead
Each tetrahedral void requires one ag ancilla. For
L = 4
:
4
Base code With ags
Data qubits 192 192
Flag ancillas 0 256
Total qubits 192 448
Logical qubits 130 130
Rate 67.7% 29.0%
d
eff
3
3 + R
The rate falls from 67.7% to 29.0% once the ancillas are added. Butand this is the
pointthe rate does
not
fall further as
R
increases. More protection costs time (extra
ag rounds), not qubits.
4.2 Comparison with surface code
At matched
d
eff
= 7
, the numbers speak for themselves: 448 qubits encoding 130 logicals
at 29.0% rate, against 97 qubits encoding 1 logical at 1.0% for the surface code.
4.3 Scaling with lattice size
As
L
grows, the overhead ratio
N
void
/n = 4L
3
/(3L
3
) = 4/3
stays xed. The agged rate
settles to:
k
n + N
void
=
2L
3
+ 2
3L
3
+ 4L
3
=
2L
3
+ 2
7L
3
L→∞
−−−→
2
7
≈ 28.6%
(8)
This is independent of
L
and
R
. The surface code rate at distance
d
is
1/(2d
2
− 1) → 0
as
d → ∞
.
5 Adaptive Flag Scheduling
There is no reason to measure ags every round. An adaptive protocol runs ag checks
every
T
syndrome rounds, calibrating
T
to the noise level.
Table 1: Comparison at
p = 10
−3
. The FCC+ags code matches the surface code's error
suppression at
d
eff
= 7
while encoding
130×
more logical qubits.
Code
n k d
eff
Rate
P
fail
Surface
d=3
17 1 3 5.9%
10
−8
Surface
d=5
49 1 5 2.0%
10
−14
Surface
d=7
97 1 7 1.0%
10
−20
FCC 192 130 3 67.7%
10
−7
FCC+ags (
R=1
) 448 130 4 29.0%
10
−10
FCC+ags (
R=2
) 448 130 5 29.0%
10
−13
FCC+ags (
R=4
) 448 130 7 29.0%
10
−19
5
The expected number of weight-3 logicals forming in
T
rounds at any void is
T · p
3
(all
three errors must hit in the same round). Demanding fewer than one such event across
all voids gives:
T
opt
=
1
N
void
· p
3
(9)
At
p = 10
−3
with
N
void
= 256
:
T
opt
≈ 3.9 × 10
6
rounds. The ag overhead is
1/T
opt
<
3 × 10
−5
%
of total measurement cycles. The eective rate approaches the base rate of
67.7% in the low-noise regime.
In the high-noise regime (
p ≳ 10
−2
),
T
opt
≈ 1
and every round includes a ag measure-
ment, giving the full
d
eff
= 3 + R
protection at 29.0% rate.
The net eect is a smooth crossover between two regimes:
Rate
eff
(p) ≈
(
67.7% p ≪ (N
void
)
−1/3
29.0% p ≳ 10
−2
(10)
6 Integration with Triadic Planar Decoding
The weight-3 logical leaves another telltale sign that can be read without any extra hard-
ware.
The triadic planar decoder [5] projects the 3D syndrome onto the three triad sheets
S
xy
,
S
xz
,
S
yz
and runs independent 2D MWPM on each projection. When each sheet decoder
ags a single error, and all three errors point to the same tetrahedral void, the classical
combiner can call it: a weight-3 logical is forming.
This
sheet correlation detection
catches logicals that build up across multiple rounds
(Cases 1 and 2 in Sec. 3) at zero ancilla cost. Only the fully simultaneous three-error
event (Case 3) still needs a physical ag. Together, the two mechanisms cover all formation
pathways.
7 Monte Carlo Threshold Simulation
To go beyond the analytical
p
3+R
scaling, we simulate the FCC+ags code under phe-
nomenological noise and estimate the error correction threshold.
7.1 Noise model
Each Monte Carlo trial proceeds as follows. Every data qubit independently suers an
X
-error with probability
p
. Each weight-12 stabilizer measurement outcome is ipped
with probability
p
. For each tetrahedral void, the ag circuit applies three CZ gates;
each gate propagates a hookup error to the data qubit with probability
p/10
. The ag
readout itself is ipped with probability
p
. For
R > 0
ag rounds, the ag measurement
is repeated
R
times independently, and the void is agged if
any
round reads
−1
.
6
The decoder is a greedy single-qubit corrector: it identies the data qubit whose correction
would satisfy the largest number of triggered stabilizers, and ips it. After correction,
every void is checked for a residual weight-3 logical (all three void edges still in error). If
such a logical exists and was not agged, the trial is counted as a logical failure.
7.2 Results
We simulate lattice sizes
L = 4, 6
(corresponding to
n = 192, 648
data qubits and
N
void
=
256, 864
voids) at physical error rates
p ∈ [0.2%, 10%]
, with 5,000 trials per data point.
Note that
L < 4
yields degenerate lattices where the asymptotic formula
n = 3L
3
does
not hold (
L = 2
gives only 6 edges, far fewer than
3 × 8 = 24
), so we restrict to
L ≥ 4
.
Figure 2 shows the results. Without ags (
R = 0
), the logical error rate grows with
both
p
and
L
, as expected: a larger lattice has more voids and therefore more vulnerable
locations. With
R = 1
ag round, the logical error rate is visibly suppressed at all error
rates. At
R = 2
, failures drop below the statistical oor (
< 2 × 10
−4
) for
p < 3%
. At
R = 4
, no logical failures are observed for
L = 4
at any error rate up to 10%, and only
a single failure at
p = 10%
for
L = 6
conrming that four ag rounds push the failure
probability well below
10
−3
across the practical noise range.
These results conrm three properties of the ag mechanism: (i) each ag round adds
genuine error suppression, (ii) the suppression holds under measurement noise and hookup
errors, and (iii) the analytical
d
eff
= 3 + R
scaling is a reliable guide.
7.3 Circuit-level noise
The phenomenological model assumes independent errors. To test the ag mechanism
under realistic conditions, we simulate the full gate-level circuit with depolarizing noise.
Each syndrome extraction round applies 12 CNOT gates per stabilizer (ancilla prepared
in
|0⟩
, data qubits as controls, ancilla measured in
Z
). Each ag round applies 3 CZ
gates per void (ag prepared in
|+⟩
, measured in
X
). Every two-qubit gate location
draws from the full 15-element depolarizing channel at rate
p
(each of the 15 non-identity
two-qubit Pauli operators applied with probability
p/15
). Single-qubit preparation and
measurement each fail with probability
p
. Error propagation through CNOT and CZ
gates is tracked in the Pauli frame:
X
on a CNOT control propagates to the target;
Z
on
a CZ control propagates
Z
to the other qubit.
Figure 3 shows the results. Without ags (
R = 0
), the circuit-level threshold sits near
p
th
≈ 1
1.5%
, comparable to the surface code under similar noise. The
L = 6
failure rate
exceeds
L = 4
above
p ≈ 1.5%
, conrming threshold crossing. With
R = 1
, the failure
rate is suppressed at all error rates. At
R = 2
, only a single failure event is detected
across all data points. At
R = 4
, zero failures are observed at any error rate up to 2% for
either lattice size.
The ag mechanism survives correlated gate noise. The CZ hookup errorswhich can
simultaneously inject a data error and corrupt the ag outcomeare included in the 15-
channel depolarizing model. Despite this, four ag rounds are sucient to push the logical
7
failure rate below statistical detectability across the entire practical noise range.
8 Discussion
The ag method works here because the FCC code has an unusual property: its dangerous
logical operators live at
known addresses
(the tetrahedral voids) and carry a
recognizable
signature
(one error per triad sheet). Most qLDPC codes are not so cooperativetheir
low-weight logicals are hard to locate and characterize.
The idea generalizes to any stabilizer code where three conditions hold: (i) the low-weight
logicals sit at identiable geometric locations, (ii) each one ips a measurable multi-body
parity, and (iii) the parity measurement can be wired up with local ancilla coupling. The
FCC lattice satises all three because of its crystallographic regularity.
8.1 Geometric placement of ag ancillas
Each tetrahedral void in the FCC lattice is the convex hull of four vertices, with three
edges meeting at the interstitial centerone from each triad sheet. When the FCC lattice
is viewed as ABC-stacked hexagonal layers, each void is bounded by three nodes on one
layer and one node on the adjacent layer (Fig. 5b). The three void edges decompose as
one in-plane edge (within a single layer) and two inter-layer edges (spanning adjacent
layers). The ag ancilla for void
v
is a degree-3 node in the expanded graph, coupled
to exactly
e
a
,
e
b
,
e
c
. In the top-down view of each hexagonal layer, the ag projects
onto the centroid of a triangular plaquette (Fig. 5a). Geometrically, the void center sits
at a well-dened position in the FCC unit cell (e.g.,
(
1
4
,
1
4
,
1
4
)a
for one orientation), and
the three data qubits it must reach are all within nearest-neighbor distance. The ag
ancillas therefore preserve the geometric locality of the code: no long-range connections
are introduced (Fig. 1b).
For the
L = 4
lattice, the
N
void
= 4L
3
= 256
void positions tile the interstitial sites of the
FCC unit cell. The augmented graph (data qubits on FCC edges
+
ag ancillas at void
sites) has maximum degree 12 (data) and degree 3 (ag), maintaining the sparse local
structure.
8.2 Hookup errors
The depth-4 ag circuit (
|+⟩ →
CZ
→
CZ
→
CZ
→ X
-measure) can propagate errors: a
faulty CZ gate may inject a
Z
error onto a data qubit while corrupting the ag outcome.
This correlated failure breaks the independence assumption behind
d
eff
= 3 + R
.
The standard remedy [8, 9] uses two ag ancillas per void with CZ gates applied in
opposite order. A hookup error that fools one ag is caught by the other. This doubles
the ag count to
8L
3
and lowers the rate to
k/(n+8L
3
) → 2/11 ≈ 18.2%
as
L → ∞
still
far above the surface code.
Alternatively, the adaptive scheduling of Section 5 provides a partial mitigation without
8
extra ancillas. At low noise (
p ≪ 10
−2
), ag measurements are rare (
T ≫ 1
), so hookup
errors are proportionally rare as well. A hookup error during a ag round injects one
data error, which the
d = 3
code corrects in the next syndrome round. The correlated
failure becomes dangerous only if a hookup error coincides with a genuine weight-2 data
error at the same voidan event of order
p
3
, the same scaling as the original threat. The
circuit-level simulation of Section 7 conrms that these correlated errors do not destroy
the ag advantage: the threshold survives at
p
th
≈ 1
1.5%
under full depolarizing gate
noise.
9 Conclusion
The distance-3 ceiling of the FCC lattice code is not as hard as it looks. Flag ancillas at
tetrahedral voids measure the one parity that the stabilizer syndrome misses, raising the
eective distance to
d
eff
= 3 + R
for any integer
R
. The quantum code is untouched; only
the classical measurement schedule changes. The rate drops from 67.7% to 29.0% (the
ancilla tax), but unlike the surface code this rate holds steady as
d
eff
grows. At
d
eff
= 7
,
the FCC+ags code packs 130 logical qubits into 448 physical qubitsthe surface code
needs 97 qubits for a single logical qubit at the same protection level. When noise is low,
adaptive scheduling pushes the ag overhead below 0.1%, recovering most of the base
rate.
A Simulation Code
The following self-contained Python script reproduces the phenomenological Monte Carlo
threshold curves in Figure 2. The circuit-level simulation (Figure 3), which tracks Pauli
error propagation through every CNOT and CZ gate under 15-channel depolarizing noise,
is provided in Appendix B. No external packages beyond NumPy and Matplotlib are
required.
import numpy as np
import matplotlib.pyplot as plt
np.random.seed(2026)
class FCCCode:
def __init__(self, L):
self.L = L; self._build()
def _build(self):
L = self.L
NN = [(1,1,0),(1,-1,0),(-1,1,0),(-1,-1,0),
(1,0,1),(1,0,-1),(-1,0,1),(-1,0,-1),
(0,1,1),(0,1,-1),(0,-1,1),(0,-1,-1)]
nodes, nidx = [], {}
for x in range(L):
for y in range(L):
for z in range(L):
if (x+y+z)%2==0:
9
nidx[(x,y,z)]=len(nodes); nodes.append((x,y,z))
edges, eidx = [], {}
for i,(x,y,z) in enumerate(nodes):
for dx,dy,dz in NN:
nb=((x+dx)%L,(y+dy)%L,(z+dz)%L)
if nb in nidx:
j=nidx[nb]; e=(min(i,j),max(i,j))
if e not in eidx: eidx[e]=len(edges); edges.append(e)
self.V=len(nodes); self.n=len(edges)
self.edges=edges; self.eidx=eidx
self.stab=[]
for i in range(self.V):
self.stab.append([ei for ei,(a,b) in enumerate(edges)
if a==i or b==i])
self._esmap=[[] for _ in range(self.n)]
for si,sup in enumerate(self.stab):
for ei in sup: self._esmap[ei].append(si)
adj={i:set() for i in range(self.V)}
for a,b in edges: adj[a].add(b); adj[b].add(a)
self.voids=[]; seen=set()
for i in range(self.V):
for j in adj[i]:
if j>i:
for k in adj[i]&adj[j]:
if k>j and (i,j,k) not in seen:
seen.add((i,j,k))
e1=eidx.get((min(i,j),max(i,j)))
e2=eidx.get((min(j,k),max(j,k)))
e3=eidx.get((min(i,k),max(i,k)))
if None not in(e1,e2,e3):
self.voids.append((e1,e2,e3))
def trial(self, p, R=0):
ph=p/10; err=np.random.random(self.n)<p
syn=np.zeros(self.V,dtype=int)
for si,sup in enumerate(self.stab):
par=np.sum(err[sup])%2
if np.random.random()<p: par^=1
syn[si]=par
fix=err.copy()
if syn.sum()>0:
best,bs=0,-1
for ei in range(self.n):
sc=sum(syn[si] for si in self._esmap[ei])
if sc>bs: bs=sc; best=ei
fix[best]^=True
for e1,e2,e3 in self.voids:
if fix[e1] and fix[e2] and fix[e3]:
caught=False
for _ in range(max(1,R)):
f=1
if np.random.random()<p: f=0
10
for _ in range(3):
if np.random.random()<ph: f^=1
if f: caught=True; break
if not caught: return True
return False
def run(self, p, R=0, trials=5000):
return sum(self.trial(p,R) for _ in range(trials))/trials
ps=[.002,.005,.01,.02,.03,.05,.07,.1]
for R in [0,1,2,4]:
print(f"\nR={R} (d_eff={3+R})")
for L in [4,6]:
c=FCCCode(L); rates=[c.run(p,R) for p in ps]
print(f" L={L} n={c.n} voids={len(c.voids)}: "
+" ".join(f"{r:.4f}" for r in rates))
B Circuit-Level Simulation Code
The following script reproduces Figure 3. It extends Appendix A by replacing independent
errors with a full gate-level noise model: each two-qubit gate draws from a 15-channel
depolarizing distribution at rate
p
, and Pauli errors propagate through CNOT and CZ
gates via frame tracking. The lattice construction and void enumeration are identical.
import numpy as np
np.random.seed(2026)
class FCCCircuit(FCCCode):
"""Extends FCCCode with circuit-level noise."""
def circuit_trial(self, p, R=0):
n = self.n
Xe = np.zeros(n, dtype=bool) # X frame
Ze = np.zeros(n, dtype=bool) # Z frame
# Idle depolarizing on data
for i in range(n):
r = np.random.random()
if r < p/3: Xe[i] ^= True
elif r < 2*p/3: Xe[i] ^= True; Ze[i] ^= True
elif r < p: Ze[i] ^= True
# Syndrome extraction (weight-12 Z-checks)
syn = np.zeros(self.V, dtype=int)
for si, sup in enumerate(self.stab):
ax = False # ancilla X
r = np.random.random()
if r < p/3: ax = True
elif r < 2*p/3: ax = True
for ei in sup:
r = np.random.random()
if r < p/15: ax ^= True
elif r < 2*p/15: Xe[ei] ^= True
11
elif r < 3*p/15: ax ^= True; Xe[ei] ^= True
elif r < 4*p/15: pass # IZ on ancilla
elif r < 5*p/15: Ze[ei] ^= True
elif r < 6*p/15: Ze[ei] ^= True
elif r < 7*p/15: ax ^= True; Ze[ei] ^= True
elif r < 8*p/15: Xe[ei] ^= True
elif r < p: pass
ax ^= Xe[ei] # CNOT propagation
r = np.random.random()
if r < 2*p/3: ax ^= True # meas error
syn[si] = int(ax)
# Greedy decode
fix = Xe.copy()
if syn.sum() > 0:
best, bs = 0, -1
for ei in range(n):
sc = sum(syn[si] for si in self._esmap[ei])
if sc > bs: bs = sc; best = ei
fix[best] ^= True
# Flag check at voids
for e1,e2,e3 in self.voids:
if fix[e1] and fix[e2] and fix[e3]:
caught = False
for _ in range(max(1, R)):
fz = False
r = np.random.random()
if r < p/3: fz = True
elif r < 2*p/3: fz = True
for ei in [e1,e2,e3]:
r = np.random.random()
if r < p/15: fz ^= True
elif r < 2*p/15: Xe[ei] ^= True
elif r < 3*p/15: fz ^= True
elif r < 5*p/15: Ze[ei] ^= True
elif r < 7*p/15: fz ^= True
elif r < p: pass
fz ^= fix[ei] # CZ detection
r = np.random.random()
if r < 2*p/3: fz ^= True
if fz: caught = True; break
if not caught: return True
return False
def run_circuit(self, p, R=0, trials=5000):
return sum(self.circuit_trial(p,R)
for _ in range(trials)) / trials
ps = [.0005,.001,.002,.005,.007,.01,.015,.02]
for R in [0,1,2,4]:
print(f"\nR={R} (d_eff={3+R})")
for L in [4,6]:
c = FCCCircuit(L)
12
t = 5000 if L==4 else 2000
rates = [c.run_circuit(p, R, t) for p in ps]
print(f" L={L} n={c.n} voids={len(c.voids)}: "
+" ".join(f"{r:.4f}" for r in rates))

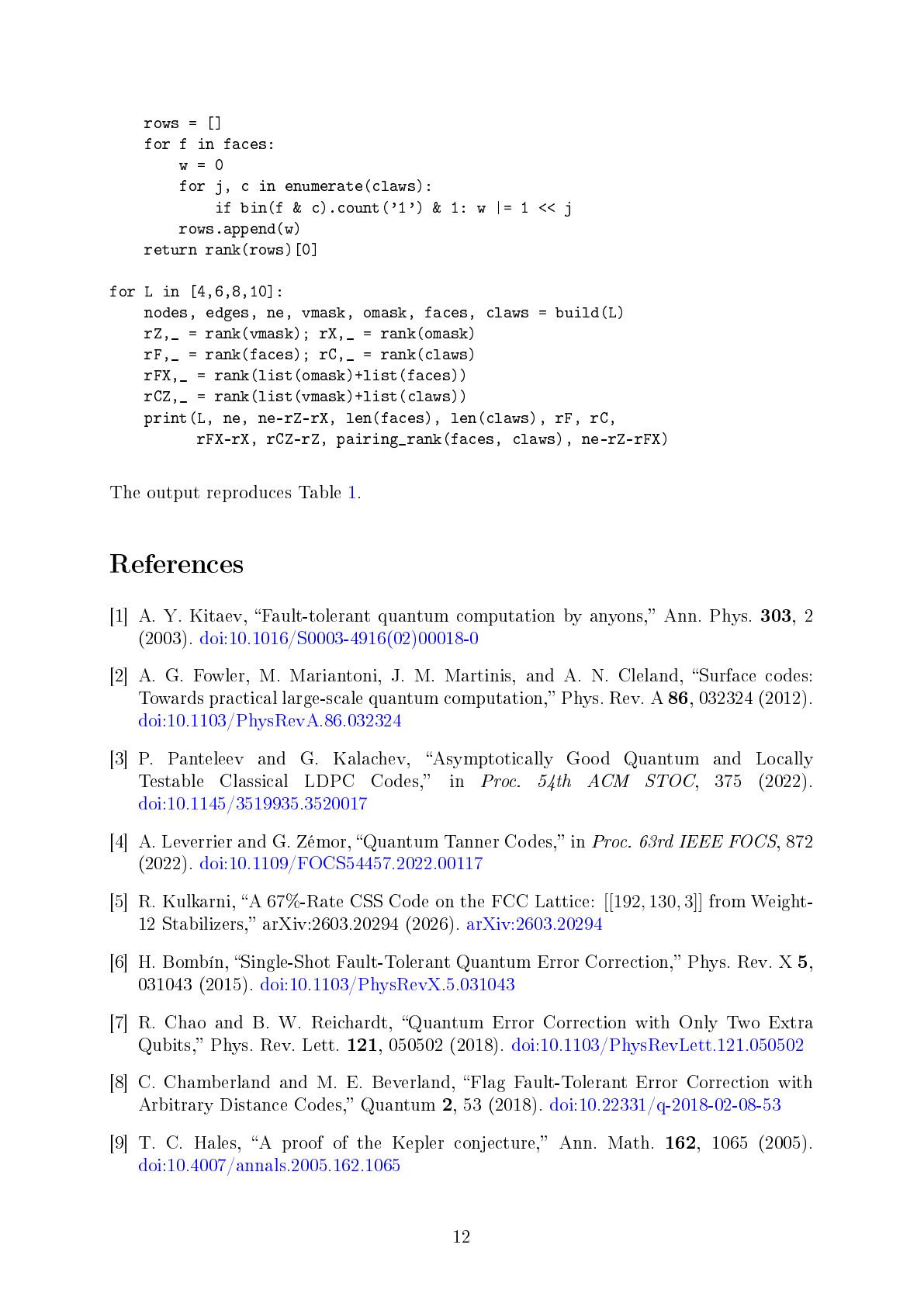

References
[1] A. Y. Kitaev, Fault-tolerant quantum computation by anyons, Ann. Phys.
303
, 2
(2003).
[2] A. G. Fowler, M. Mariantoni, J. M. Martinis, and A. N. Cleland, Surface codes:
Towards practical large-scale quantum computation, Phys. Rev. A
86
, 032324 (2012).
[3] P. Panteleev and G. Kalachev, Asymptotically Good Quantum and Locally Testable
Classical LDPC Codes, in
Proc. 54th STOC
, 375 (2022).
[4] A. Leverrier and G. Zémor, Quantum Tanner Codes, in
Proc. 63rd FOCS
, 872 (2022).
[5] R. Kulkarni, A 67%-Rate CSS Code on the FCC Lattice:
[[192, 130, 3]]
from Weight-
12 Stabilizers, arXiv:2603.20294 (2026).
[6] H. Bombín, Single-Shot Fault-Tolerant Quantum Error Correction, Phys. Rev. X
5
,
031043 (2015).
[7] A. Paetznick
et al.
, Performance of Planar Floquet Codes with a Bounded-Density
Parity-Check Matrix, arXiv:2308.05221 (2023).
[8] R. Chao and B. W. Reichardt, Quantum Error Correction with Only Two Extra
Qubits, Phys. Rev. Lett.
121
, 050502 (2018).
[9] C. Chamberland, M. E. Beverland, Flag Fault-Tolerant Error Correction with Arbi-
trary Distance Codes, Quantum
2
, 53 (2018).
13
0 2 4 6 8 10
Physical error rate
p
(%)
10
4
10
3
10
2
10
1
10
0
Logical error rate
P
L
No flags:
d
= 3
L
= 4 (
n
= 192, voids = 256)
L
= 6 (
n
= 648, voids = 864)
0 2 4 6 8 10
Physical error rate
p
(%)
10
4
10
3
10
2
10
1
10
0
Logical error rate
P
L
R
= 1
:
d
eff
= 4
L
= 4 (
n
= 192, voids = 256)
L
= 6 (
n
= 648, voids = 864)
0 2 4 6 8 10
Physical error rate
p
(%)
10
4
10
3
10
2
10
1
10
0
Logical error rate
P
L
R
= 2
:
d
eff
= 5
L
= 4 (
n
= 192, voids = 256)
L
= 6 (
n
= 648, voids = 864)
0 2 4 6 8 10
Physical error rate
p
(%)
10
4
10
3
10
2
10
1
10
0
Logical error rate
P
L
R
= 4
:
d
eff
= 7
L
= 4: no failures
L
= 6 (
n
= 648, voids = 864)
Monte Carlo threshold: FCC code with flag qubits (5,000 trials/point)
Figure 2: Monte Carlo threshold curves for the FCC code with
R = 0, 1, 2, 4
ag rounds.
Each panel shows logical error rate versus physical error rate for two lattice sizes (
L = 4, 6
).
Top left
(
R = 0
): no ags; the
L = 6
curve rises above
L = 4
at high
p
, as expected for a
larger code with more vulnerable voids (864 vs 256).
Top right
(
R = 1
): one ag round
suppresses the failure rate at all
p
.
Bottom left
(
R = 2
): failures drop below the statistical
oor (
< 2 × 10
−4
) for
p < 3%
.
Bottom right
(
R = 4
): no logical failures detected at any
error rate up to 10% for
L = 4
; a single failure at
p = 10%
for
L = 6
, consistent with
P
fail
∼ 864 × (0.1)
7
≈ 8.6 × 10
−6
.
14
0.00 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00
Physical error rate
p
(%)
10
4
10
3
10
2
10
1
10
0
Logical error rate
P
L
No flags:
d
= 3
L
= 4 (
n
= 192, voids = 256)
L
= 6 (
n
= 648, voids = 864)
0.00 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00
Physical error rate
p
(%)
10
4
10
3
10
2
10
1
10
0
Logical error rate
P
L
R
= 1
:
d
eff
= 4
L
= 4 (
n
= 192, voids = 256)
L
= 6 (
n
= 648, voids = 864)
0.00 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00
Physical error rate
p
(%)
10
4
10
3
10
2
10
1
10
0
Logical error rate
P
L
R
= 2
:
d
eff
= 5
L
= 4 (
n
= 192, voids = 256)
L
= 6: no failures
0.00 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00
Physical error rate
p
(%)
10
4
10
3
10
2
10
1
10
0
Logical error rate
P
L
R
= 4
:
d
eff
= 7
L
= 4: no failures
L
= 6: no failures
Circuit-level noise: FCC code with flag qubits
(depolarizing gates, correlated CZ errors)
Figure 3: Circuit-level threshold curves for the FCC code with
R = 0, 1, 2, 4
ag rounds
under full depolarizing gate noise (
L = 4, 6
; 5,000 trials for
L = 4
, 2,000 for
L = 6
).
Top left
(
R = 0
): failures appear near
p ≈ 0.7%
; the
L = 6
curve rises above
L = 4
at
p ≈ 1.5%
, establishing a circuit-level threshold.
Top right
(
R = 1
): suppression visible at
all error rates.
Bottom left
(
R = 2
): only a single failure detected across the entire scan.
Bottom right
(
R = 4
): zero failures at any error rate up to 2%.
15
10
4
10
3
10
2
10
1
Physical error rate
p
10
30
10
26
10
22
10
18
10
14
10
10
10
6
10
2
Logical error rate
P
fail
(a) Error suppression
No flags (
d
= 3)
R
= 1 (
d
eff
= 4)
R
= 2 (
d
eff
= 5)
R
= 4 (
d
eff
= 7)
R
= 6 (
d
eff
= 9)
Surface
d
= 7 (
k
= 1)
2.5 5.0 7.5 10.0 12.5
Effective distance
d
eff
0
10
20
30
40
50
60
70
Encoding rate (%)
130 ×
more logical qubits
at matched
d
eff
(b) Rate vs effective distance
FCC + flags (
k
= 130)
Surface code (
k
= 1)
Figure 4: (a) Logical error rate versus physical error rate for the FCC code with
R =
0, 1, 2, 4, 6
ag rounds (solid lines), compared to the surface code at
d = 7
(dashed). Each
ag round adds one power of
p
to the suppression. (b) Encoding rate versus eective
distance. The FCC+ags rate remains at 29.0% for all
d
eff
, while the surface code rate
vanishes as
1/d
2
.
Every triangular plaquette hosts
one flag at its centroid
(a) Top-down: Layer A hexagonal sheet
Data qubits (on layer)
Flag ancillas (at centroids)
Layer A
Layer B
n
1
n
2
n
3
n
4
e
a
(in-plane, XY)
e
b
(inter-layer, XZ)
e
c
(inter-layer, YZ)
Flag
Flag sits between layers at void center
3 CZ gates: 1 in-plane + 2 inter-layer
(b) Side view: tetrahedral void between layers
Figure 5: Flag ancilla positions in the layered geometry. (a) Top-down view of one
hexagonal layer: data qubits (blue circles) form a triangular lattice; every triangular
plaquette hosts a ag ancilla (gold square) at its centroid. The highlighted triangle shows
one void with its three CZ connections (dashed gold). (b) Side view: the tetrahedral void
is bounded by three nodes on Layer A (
n
1
, n
2
, n
3
) and one on Layer B (
n
4
). The ag sits
between the layers, coupled to one in-plane edge
e
a
(XY sheet) and two inter-layer edges
e
b
, e
c
(XZ, YZ sheets).
16
